Key Features
500*420*310
Dimensions (mm)
35kg
Weight
3H
Battery Life
50kg
Vertical load
1.3m/s
Max Speed

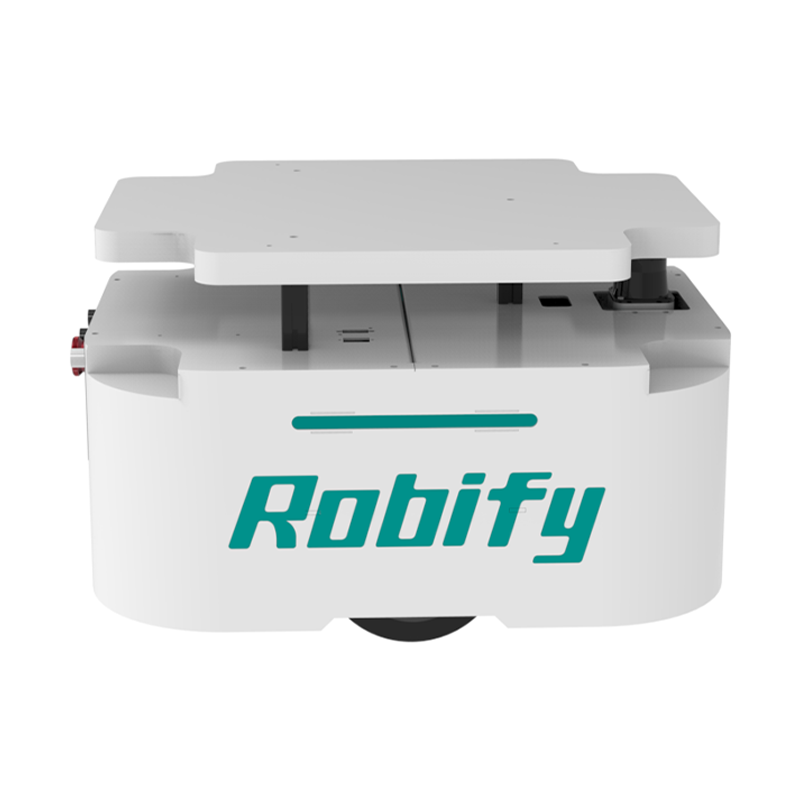

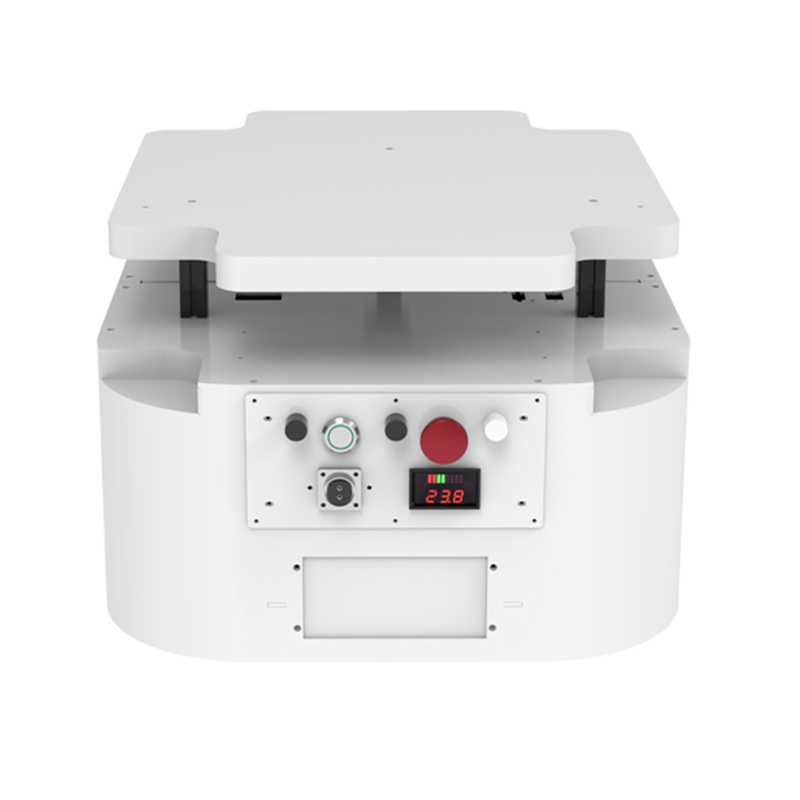

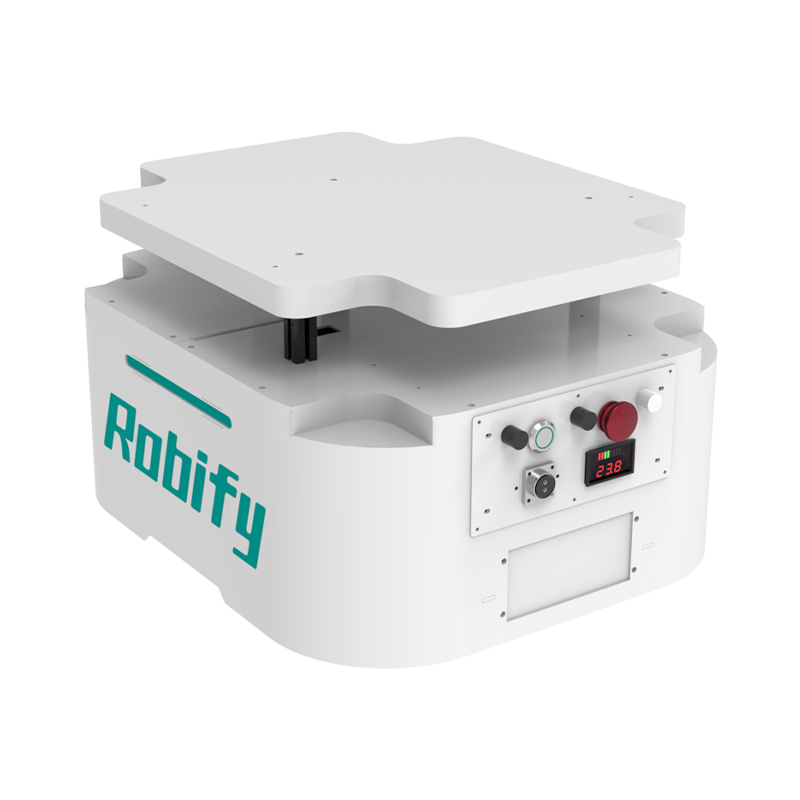

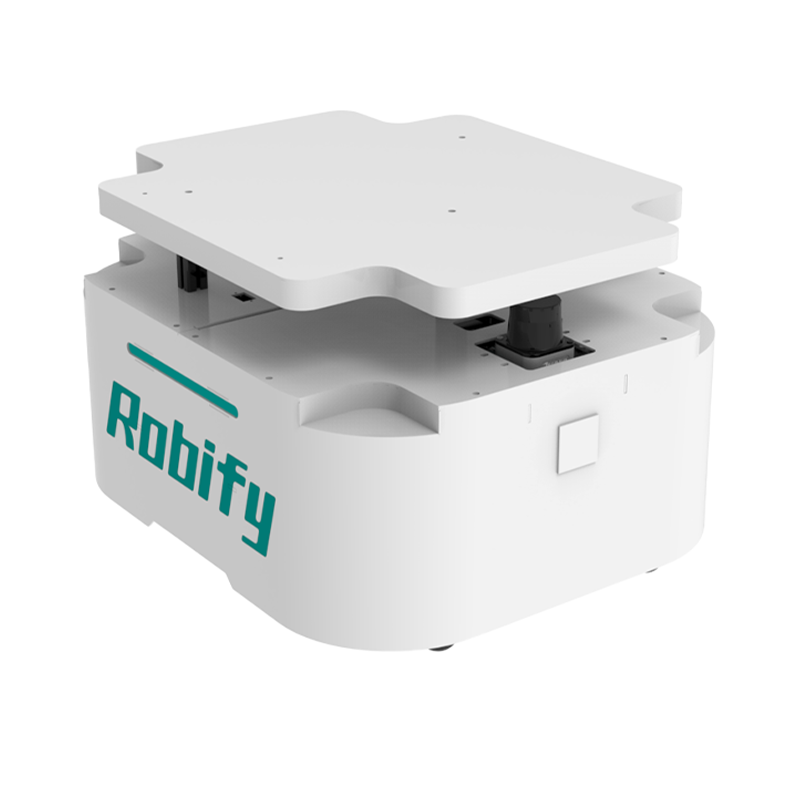

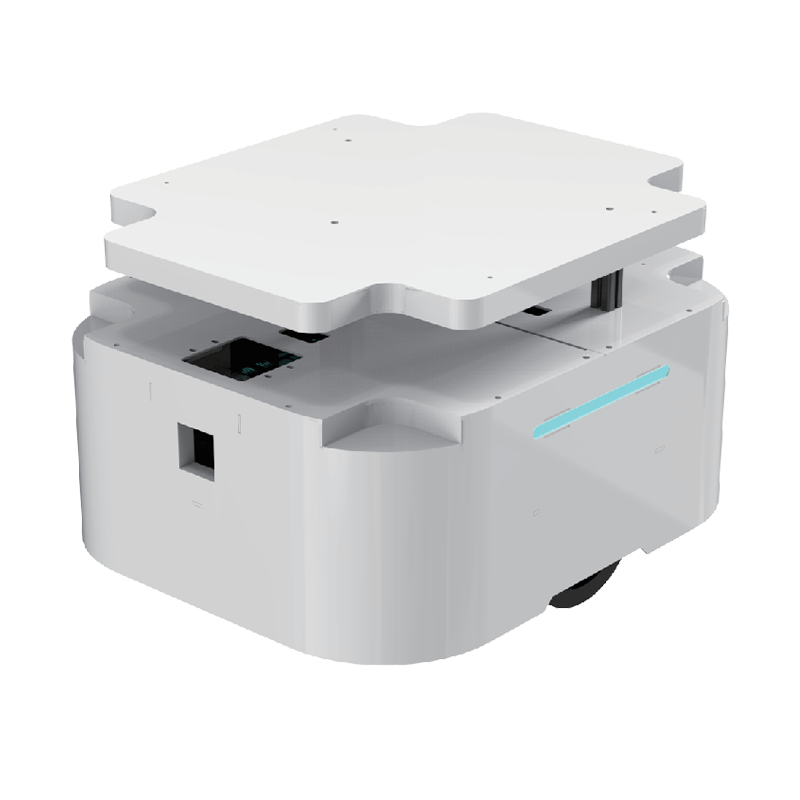

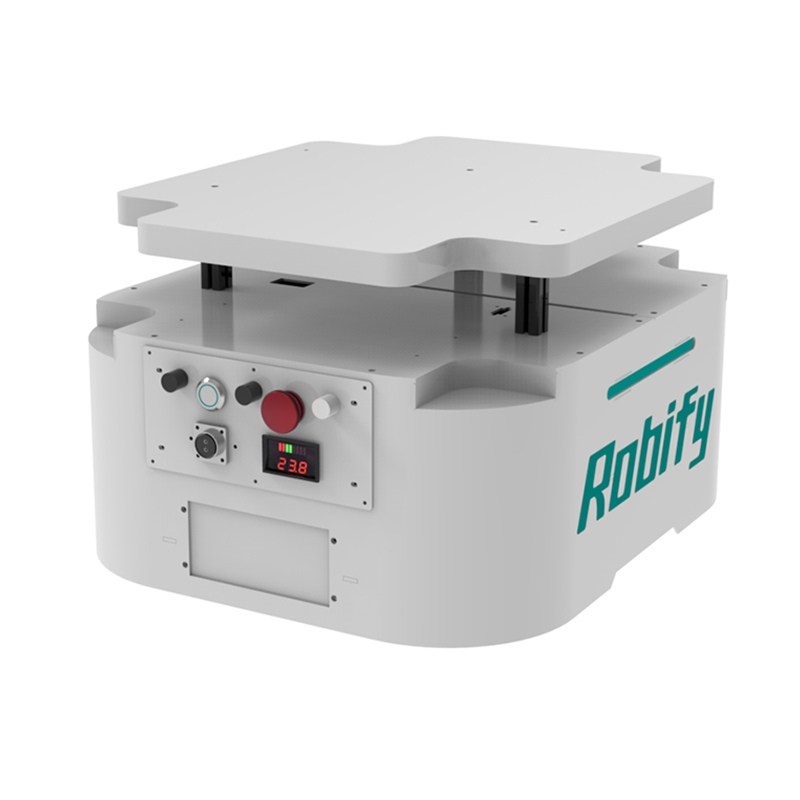

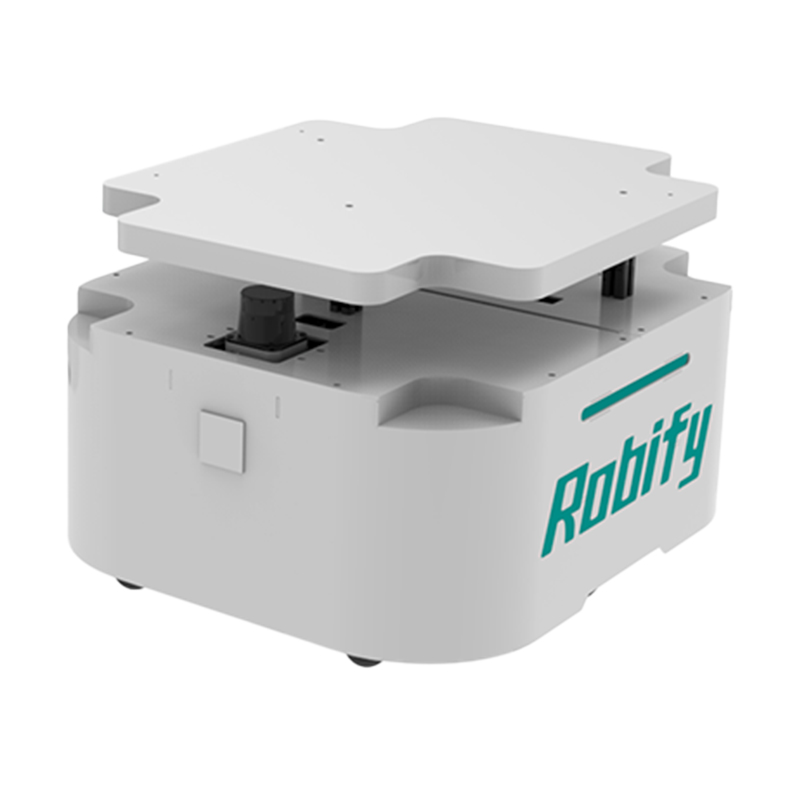

RobiHaul 1.0 AGV Robot for SLAM Navigation & Auto Charging
$3,000.00
Short Description
RobiHaul 1.0 is a 50 kg payload differential-drive AGV robot with SLAM navigation, autonomous obstacle avoidance, and automatic charging. Its zero-radius turning design enables precise maneuvering in laboratories, warehouses, and other confined indoor environments.
Built for robotics research and material-handling development, the platform supports modular mounting for LiDAR and cameras, real-time data transmission through Ethernet or Wi-Fi, and an open SDK compatible with ROS, Python, and C++. It can be customized for indoor inspection, autonomous transport, and navigation algorithm development.
Buy it with:
AGV Robot with SLAM Navigation for Indoor Automation
RobiHaul 1.0 is a differential-drive AGV robot designed for indoor inspection, material handling, laboratory research, and warehouse applications. The platform has a 50 kg load capacity, zero-radius turning, a 3-hour lithium battery, and an automatic charging dock.
It provides modular mounting for LiDAR, cameras, and a magnetic-tape navigation kit, real-time data transmission through Ethernet or Wi-Fi, and an open SDK supporting ROS integration and Python/C++ API development.
Vertical load
50 KG
Runtime
3H
Maximum speed
1.3 M/S
Steering Flexibility
2D laser SLAM technology enables rapid mapping of areas exceeding 50,000 square meters, making it suitable for complex environments such as large warehouses and factories.
Obstacle Avoidance
Laser obstacle avoidance (7-10 cm sensing range) supports intelligent obstacle avoidance and stopping.ensuring safe operation in human-machine collaboration scenarios.
Dimensional Diagram
| Dimensions | 500*420*310 (mm) |
| Weigh | 35KG |
| Protection rating | IP22 |
| Operating temperature | -10-60° |
| Battery capacity | 24V20AH (expandable) |
| Battery life | 3H |
| Charging time | 3H |
| Vertical Load | 50KG |
| Maximum speed | 1.3M/S |
| System Support | ROS/WIN/UBUNTULaser |
Product Parameters
| Overall Size |
500*420*310 (mm) |
|---|---|
| Chassis Quality |
35KG |
| Imakings |
Q235 |
| Vertical Load |
50KG |
| Number Of Encoder Lines |
4096 lines |
| Protection Class |
IP22 |
| Operating Temperature |
-10-60° |
| Charging Time |
<3H |
| Motor Type |
Hub Motor (Brushless DC) |
| Maximum Speed |
1.3M/S |
| Battery Life |
3H |
| Battery Capacity |
24V 12AH |
| External Power Supply |
24V/19V/12V |
| Emergency Stop Method |
Remote / Hardware / Software |
| System Support |
ROS/WIN/UBUNTULaser |
| Navigation Methods |
Laser Navigation (2D SLAM) |
| Navigation Accuracy |
+50 mm (Auxiliary positioning accuracy +10 mm) |
| Navigation Protocol |
HTTP/Websocket |
| Plot Area |
≥50000㎡ |
