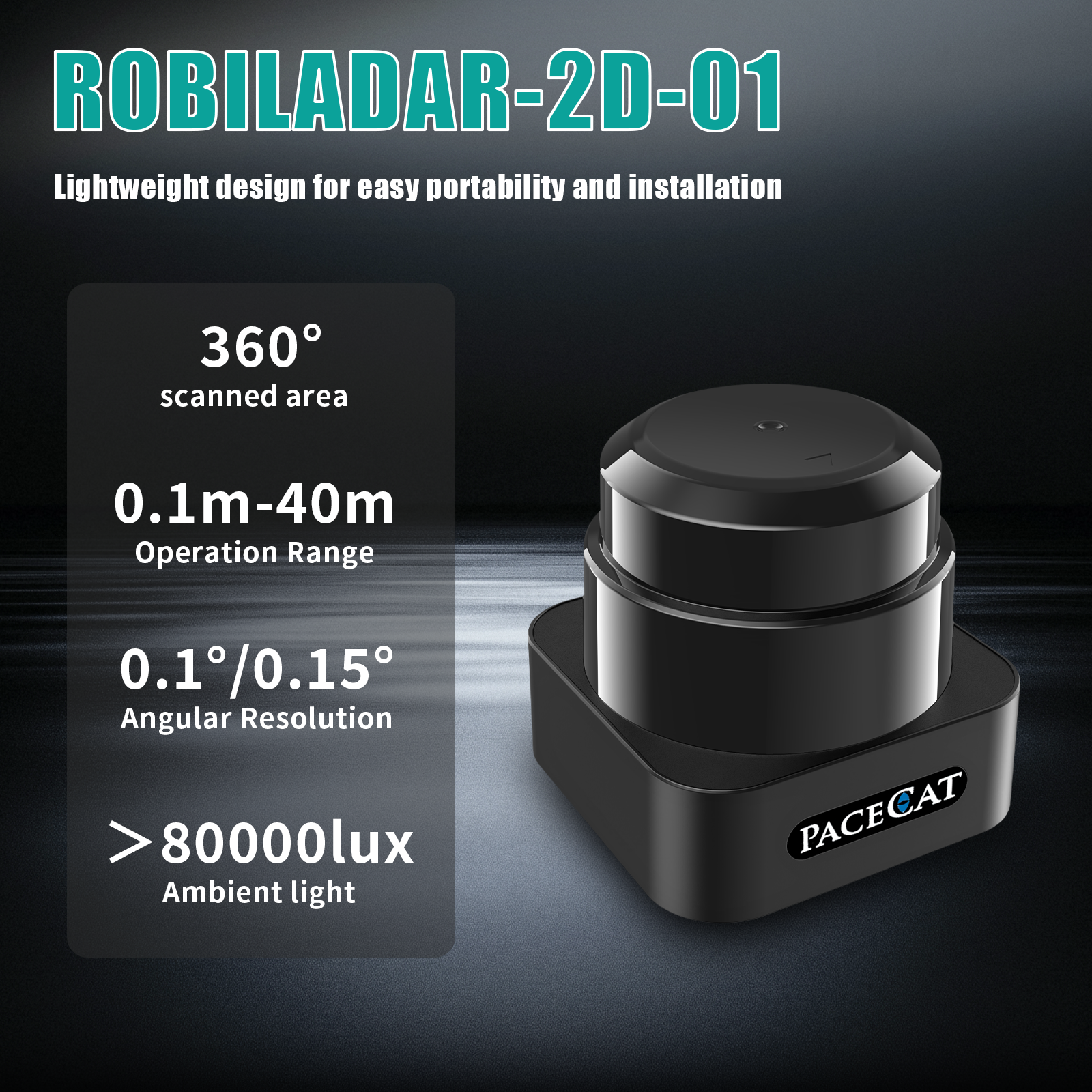

RobiLidar-2D-01
Short Description

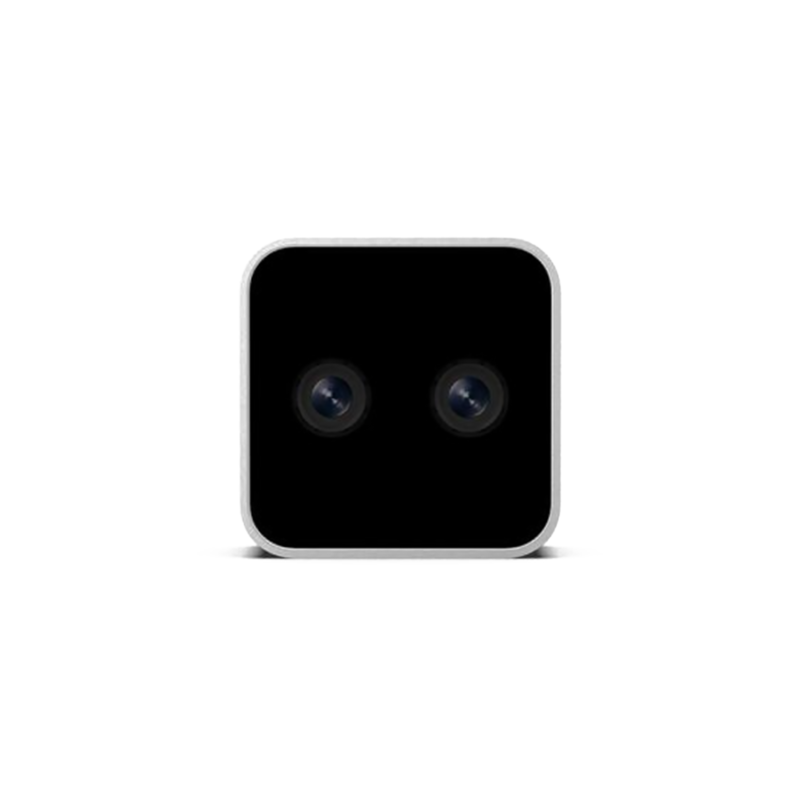

Buy it with:
| Laser Wavelength |
905nm±15nm |
|---|---|

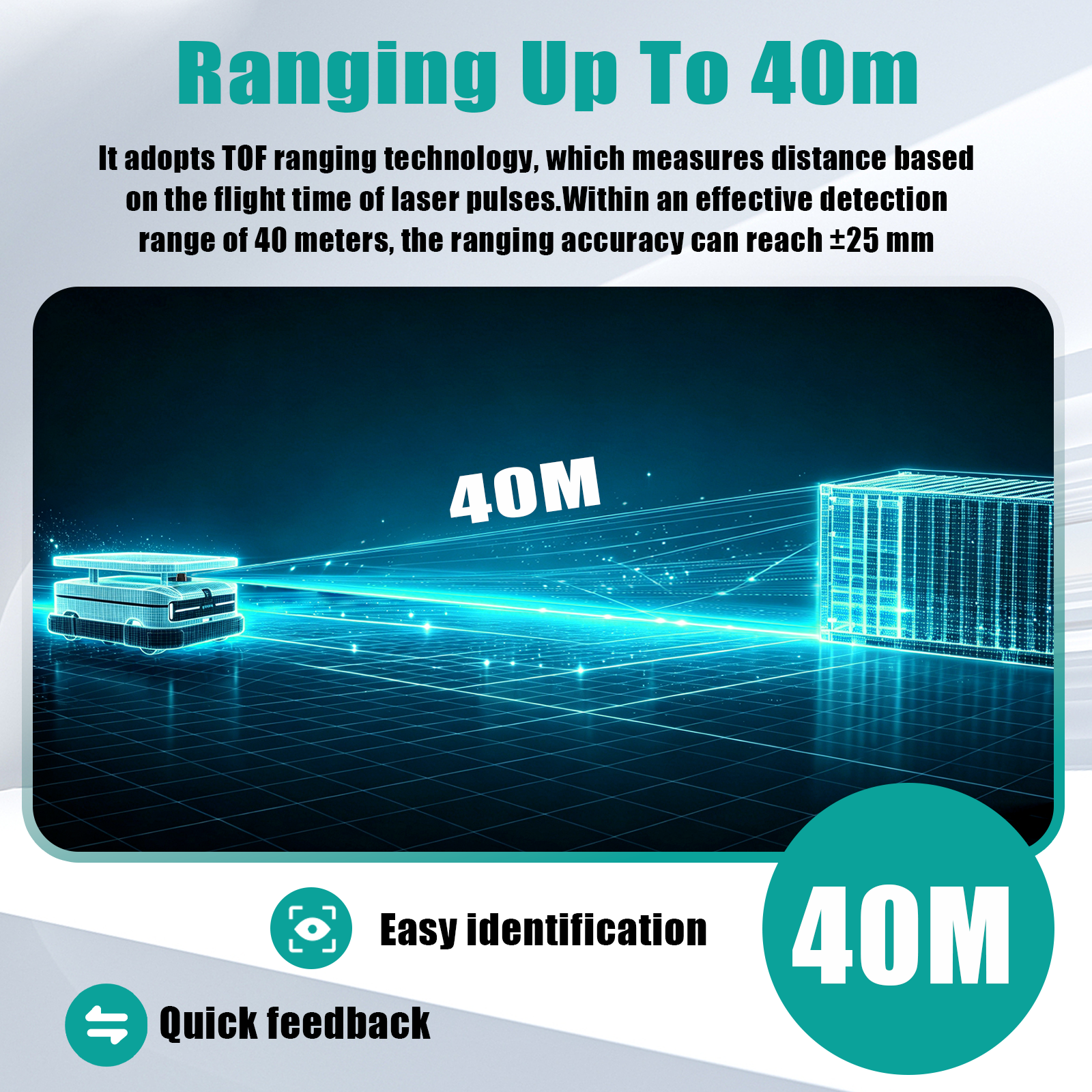

| Ranging Distance |
0.1-40m@90% reflection |
| Laser divergence angle |
<5.2 mrad |
| Laser horizontal parallelism |
±0.3° |
| Rotation direction |
anticlockwise |

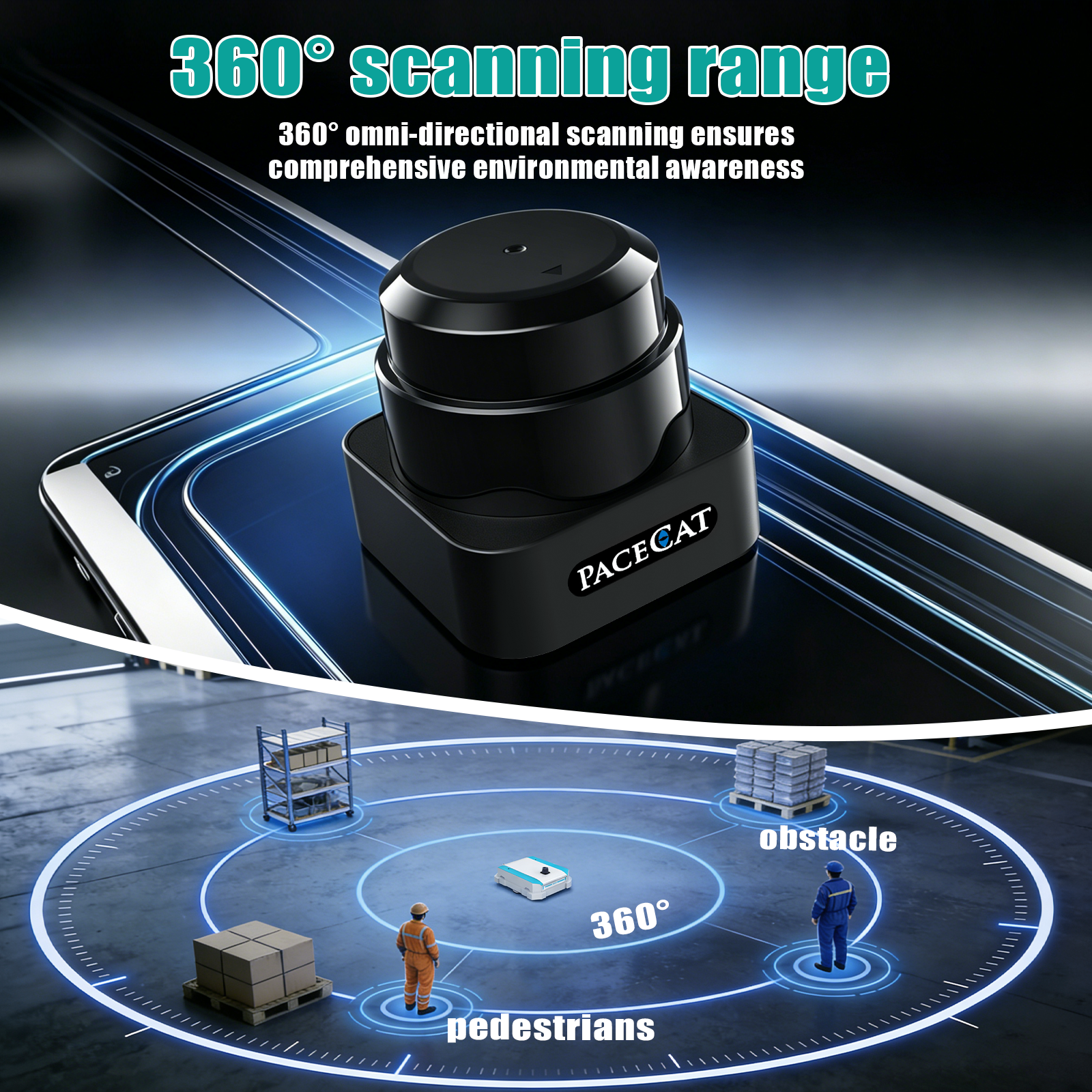

| Scanning area |
360° |
| Scanning frequency |
10Hz,15Hz（600RPM,900RPM,with a fluctuation range of ±5%） |
| Angle resolution |
0.1°,0.15° |
| Ranging speed |
36000Measurement value/s |
| Ranging accuracy |
±25mm（The ranging accuracy is ±25mm under the reflection condition of |
| Distance resolution |
10mm |
| Light spot |
Vertical length:6.5mm+4.3×distance(mm) |
| Port |
Ethernet UDP 100M full duplex |
| Power |
<2.5W |
| Output |
Original data（Distance, Angle, Energy） |
| Ambient light |
＞80000lux |
| Power supply |
10~26VDC |
| Working temperature |
-10°C~50°C |
| Storage dimensions |
-25°C~65°C |
| Size |
55.5mm*55.5mm*51.7mm (Length * width * height） |
Order Confirmation
After your payment is processed, one of our engineers will contact you via email to confirm your product specifications and delivery details. Please respond promptly to ensure timely delivery.
Processing Time
Orders ship within 15 business days from the date of order confirmation.
Delivery Method
We provide door-to-door delivery service for all robot products. Our shipping partners will deliver your order directly to your specified address.
Tracking Information
Once your order ships, you will receive a tracking number via email to monitor your delivery status.
