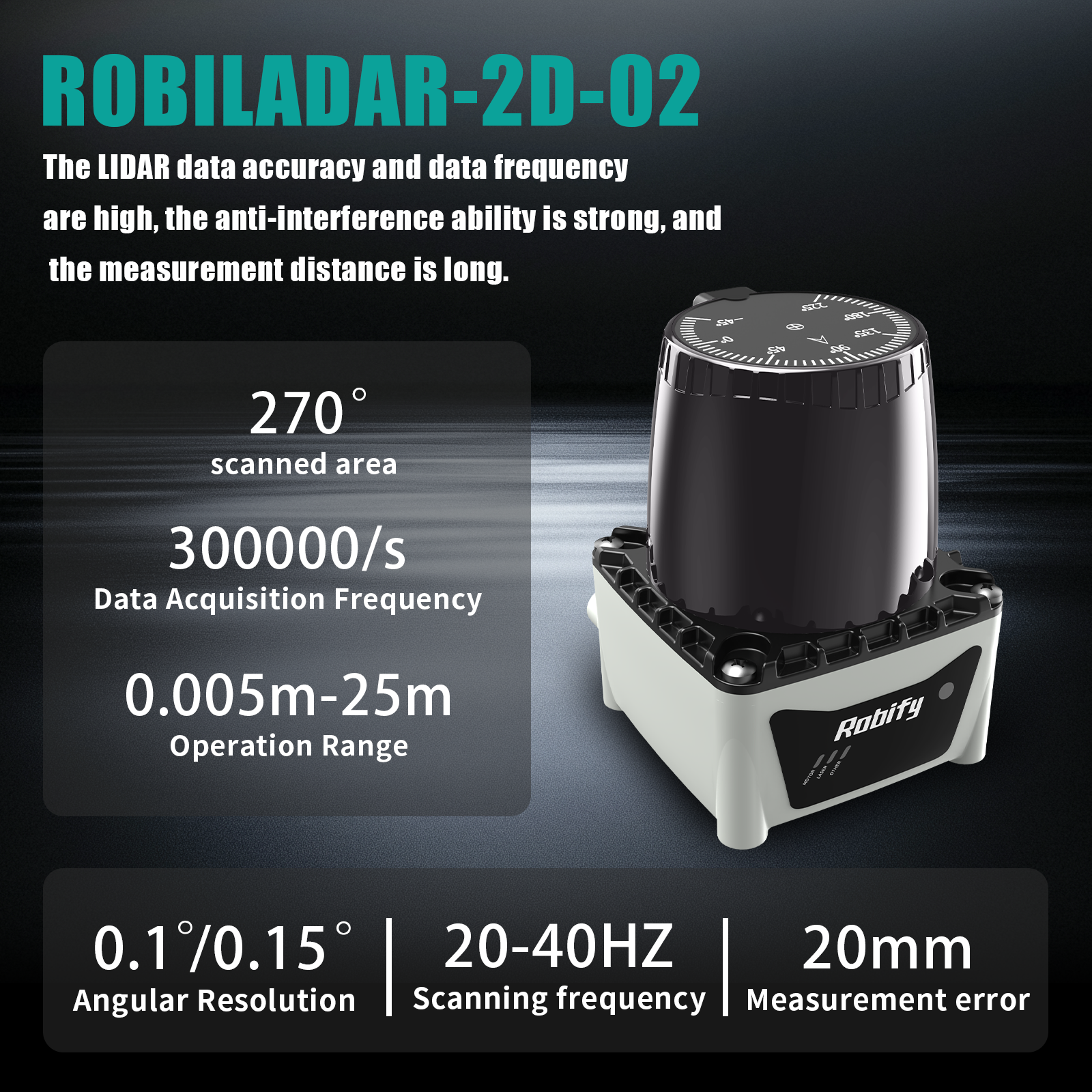

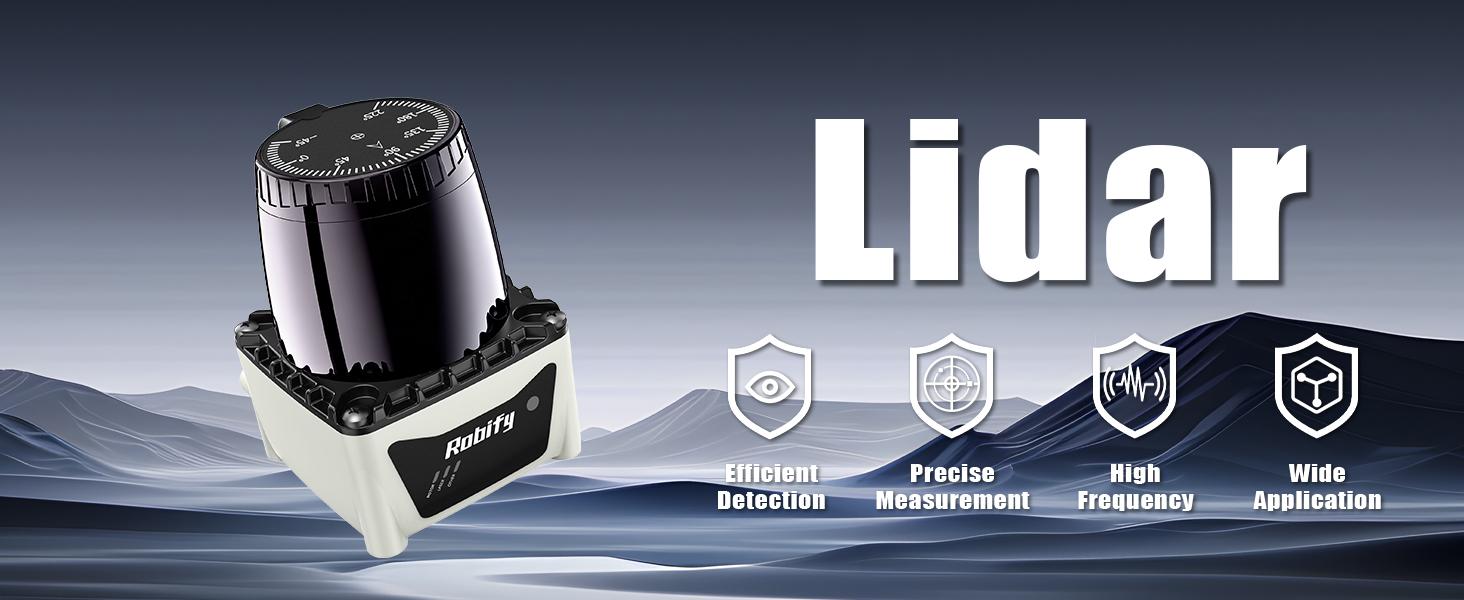

RobiLidar-2D-02
Short Description
Buy it with:
Dimensional Diagram
| Dimensions | 1435*900*685 (mm) |
| Chassis quality | 310KG |
| Protection rating | IP44 |
| Operating temperature | -10-60° |
| Battery capacity | 48V 20AH (expandable) |
| Battery life | ＞3H |
| Charging time | 3H |
| Motor power | 1500W*2 |
| Maximum speed | 1.4M/S |
| Vertical load | 300KG |
Product Parameters
| Weight |
200g |
|---|---|
| Size |
52mm× 52mm×70mm |
| Laser Class |
1 (eye-safe) |
| Laser Light Source |
905nm |

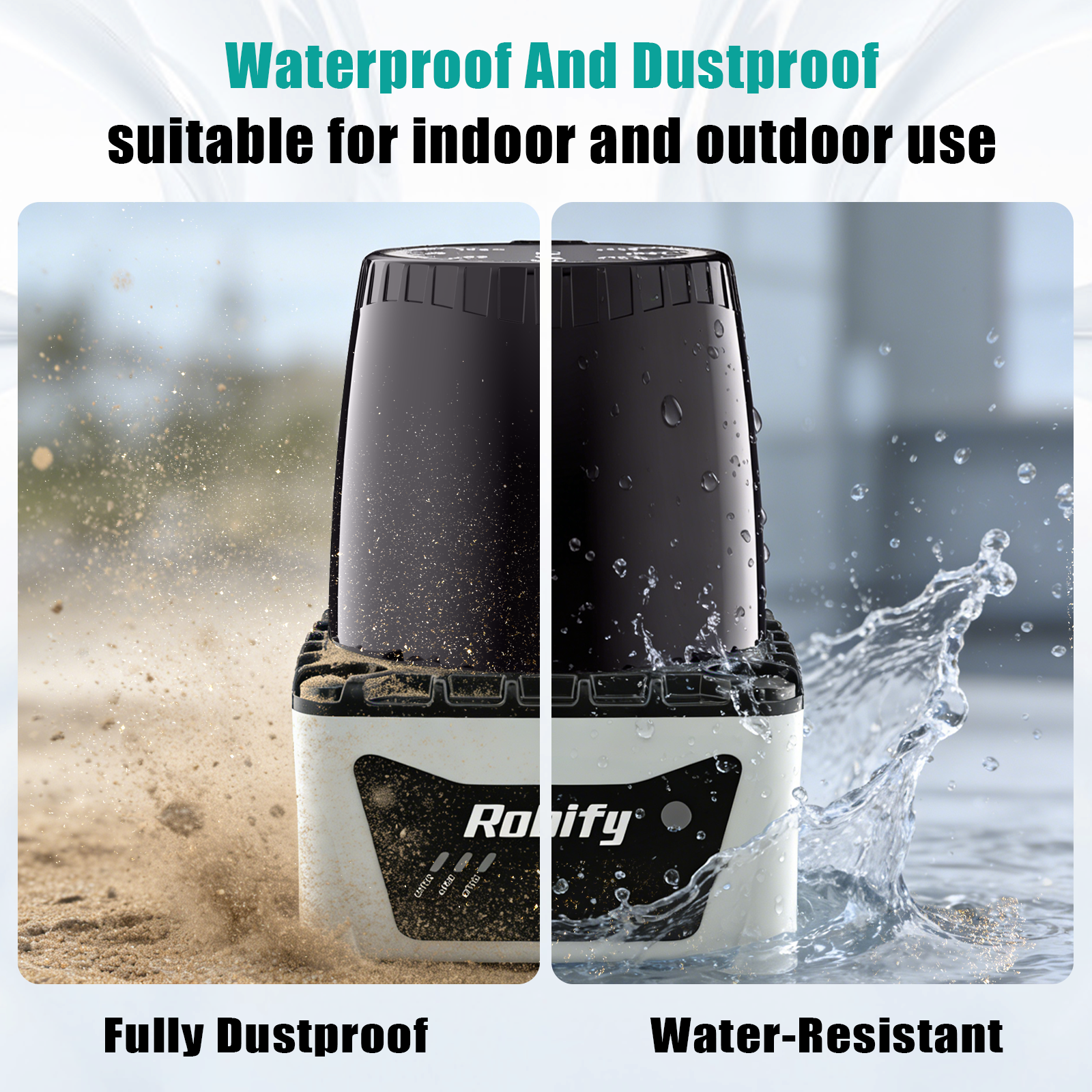

| Ingress Protection |
IP65 |
| Laser Beams |
Single-line |
| Frequency |
±6mm |
| Systematic Error |
10mm |
| Operation Range |
25m–0.005m |
| Max Range |
25m70% |

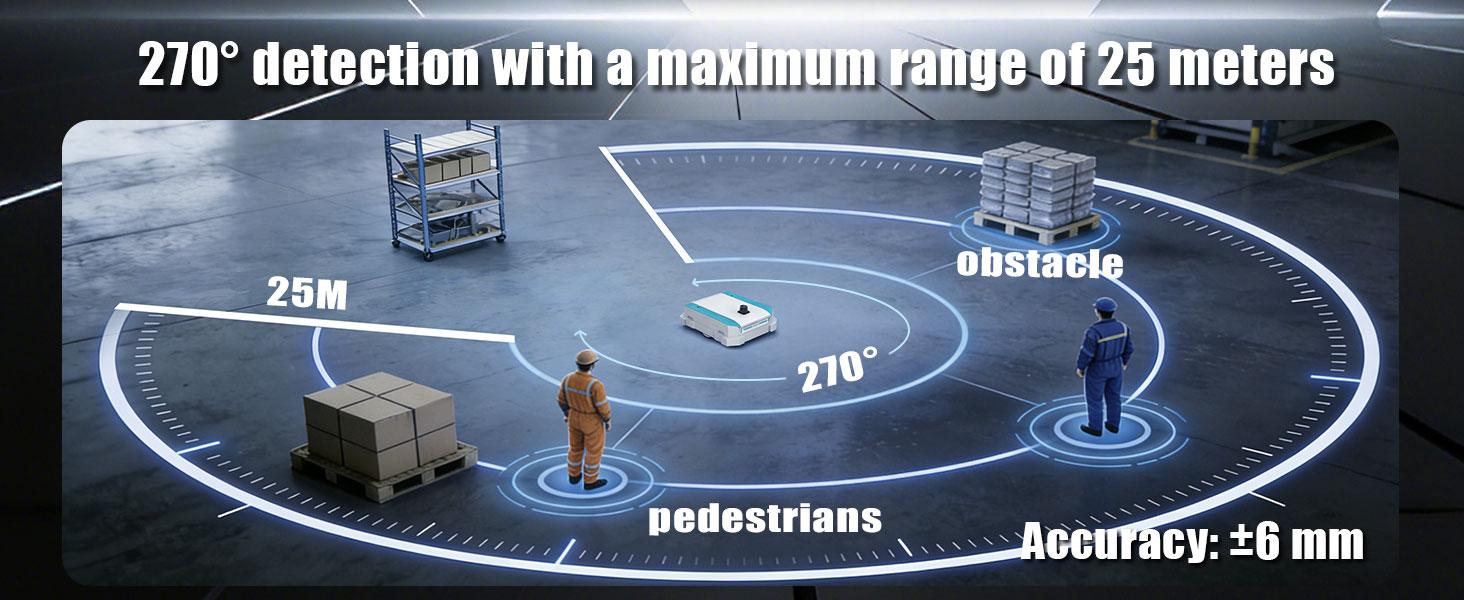

| Horizontal FoV |
270 ° |
| Scanning Angle |
±0.6 ° |
| Output data content |
Point cloud |
| Ambient Light Immunity |
80000Lux |
| Response time |
33ms/circle (Typical value,Configurable) |
| Frequency of data collection |
33，750data points/s |
| Echo mode |
Single echo |
| Echo intensity |
16 |
| Cable length |
1m |
| Angular Resolution |
0.15° |
| Supply Voltage |
DC9-28V |
| Power Consumption |
<2W |
| Temperature |
Operating:-20~55°C |
| Moisture |
Operating：35%RH～85%RH；Storage： 35%RH～95%RH |
| Power-on start time |
Typical value 10s |
