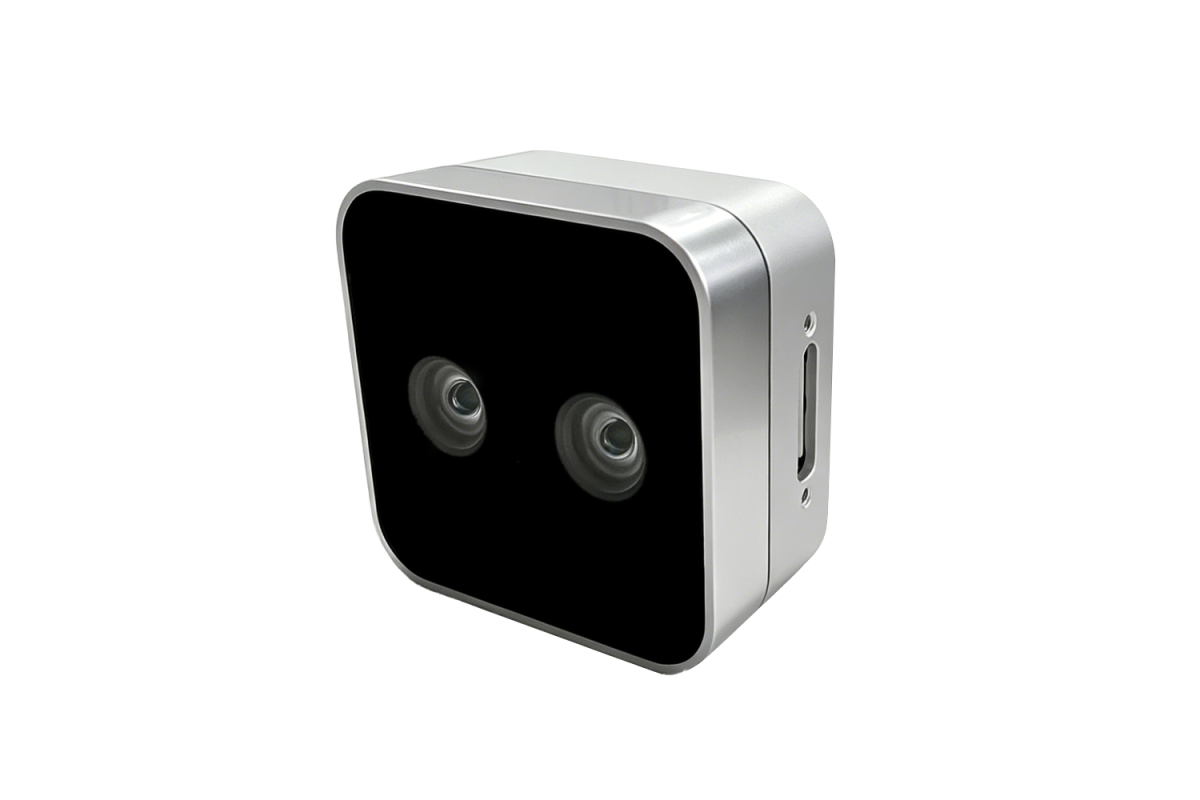

Intel D405 Depth Camera
$410.00
Short Description
The RealSense™ D405 with its sub-millimeter detection accuracy further expands the most comprehensive portfolio of RealSense™ depth camera solutions on the market. See the world up close with the RealSense Depth Camera D405.
- The D405 operates at an ideal range of 7 cm to 50 cm with minimum object detection down to 500 microns at 7 cm. It features high-resolution, color, global shutter depth sensors providing matched RGB and depth data.
- We make the camera smaller by getting RGB data from the depth sensor and enhancing it with an image signal processor (ISP).
- The D405 is the depth camera of choice for applications from precision robot gripping operations to assembly line inspections to more effective wound care management and other close-range tasks.
- The D405 with its sub-millimeter detection accuracy further expands the most comprehensive portfolio of RealSense™ depth camera solutions on the market. See the world up close with the RealSense Depth Camera D405.
- Support for the cross-platform, open-source RealSense™ SDK 2.0.
Buy it with:
RealSense™ D405. See the world up close.
The RealSense™ Depth Camera D405 is a short-range stereo camera providing sub-millimeter accuracy for your close-range computer vision needs.
FOV
87° × 58°
Ideal Range
7-50 cm
Image Sensor Technolog

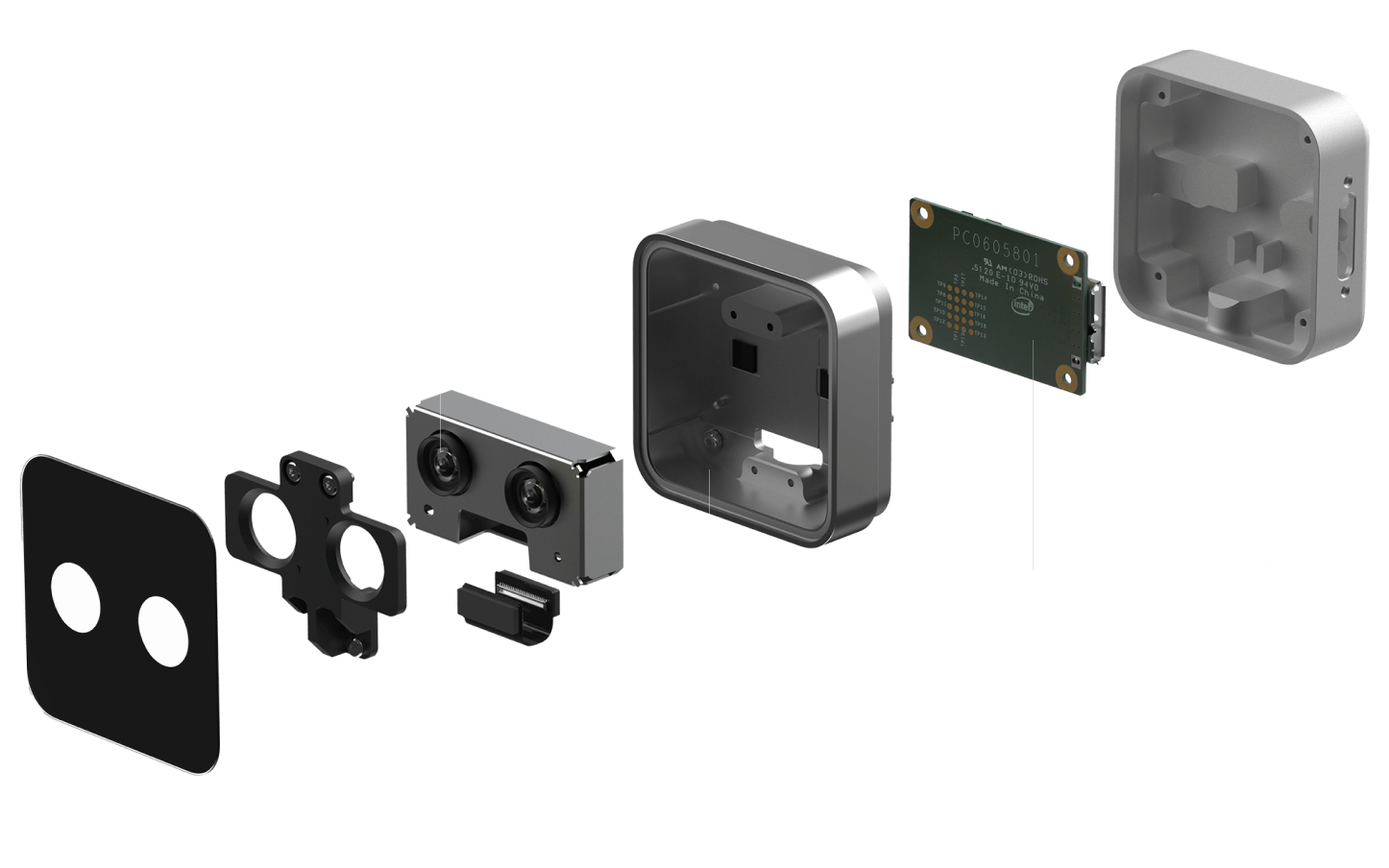

RGB without a dedicated RGB
Sub-millimeter accuracy RGB
Sub-millimeter accuracy
Small and light
A closer look
Precise accuracy lets the RealSense Depth Camera D405 open up a whole new world of use cases that require close range depth sensing. Robots with gripping capabilities, assembly line inspections and effective wound management are just some of the places the high-resolution global shutter depth sensors of the D405 can make a big difference.
Manufacturing
Agriculture
Healthcare
Custom solutions
Dimensional Diagram
| Dimension | 42×42×23 mm | ||||||||||||||||||||||||||||||||
| Weight | 60g | ||||||||||||||||||||||||||||||||
| Ideal Working Distance | 7-50cm | ||||||||||||||||||||||||||||||||
| Depth Accuracy | <2% at 50 cm | ||||||||||||||||||||||||||||||||
| Minimum Depth Distance (Min-Z) | ~7 cm @ 480p | ||||||||||||||||||||||||||||||||
| FOV | 87° × 58° | ||||||||||||||||||||||||||||||||
| Image Sensor Technolog | Global Shutter | ||||||||||||||||||||||||||||||||
| Depth Technology | Stereoscopic | ||||||||||||||||||||||||||||||||
| Connectors | USB 2 USB, C* 3.1 Gen 1* | ||||||||||||||||||||||||||||||||
| Dimension |
42×42×23 mm |
|---|---|
| Weight |
60g |
| Ideal Working Distance |
7-50cm |
| Depth Accuracy |
<2% at 50 cm |
| Minimum Depth Distance (Min-Z) |
~7 cm @ 480p |
| FOV |
87° × 58° |
| Image Sensor Technolog |
Global Shutter |
| Depth Technology |
Stereoscopic |
| Depth Stream Output Resolution |
Up to 1280 × 800 |
| Depth Stream Output Frame Rate |
Up to 90 fps |
| RGB Frame Resolution |
1280 × 800 |
| RGB Frame Rate |
90 fps |
| RGB Sensor Technology |
Lef Imager RGB with ISP |
| Camera Module |
RealSense Module D401 |
| Vision Processor Board |
RealSense Vision Processor D4 Board v4 |

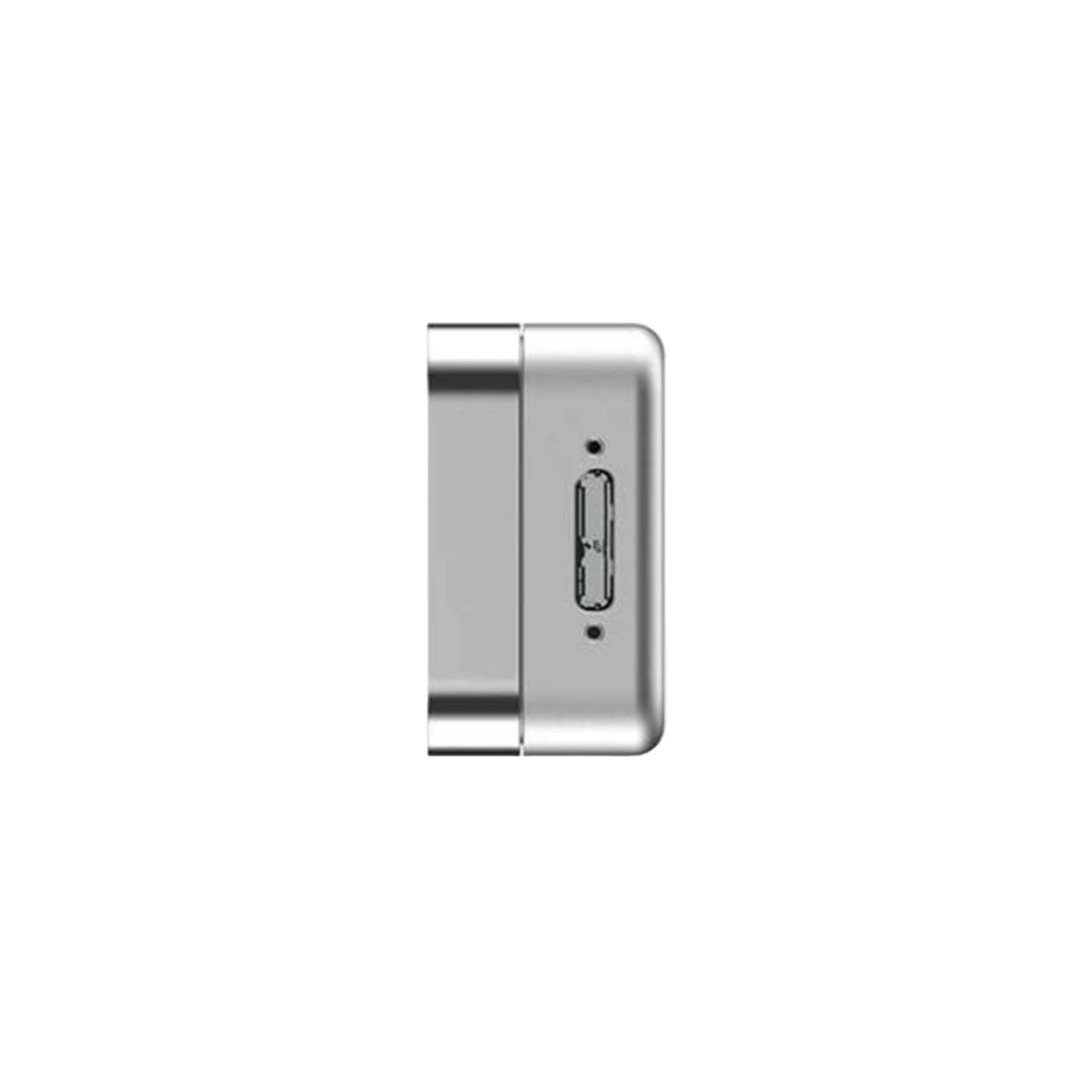

| Connectors |
USB 2 USB, C* 3.1 Gen 1* |
| Mounting Mechanism |
– One 1/4‑20 UNC thread mounting point |
