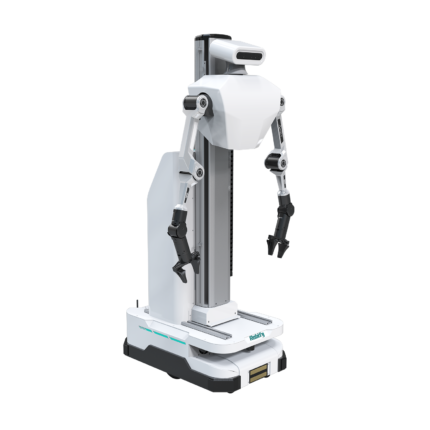

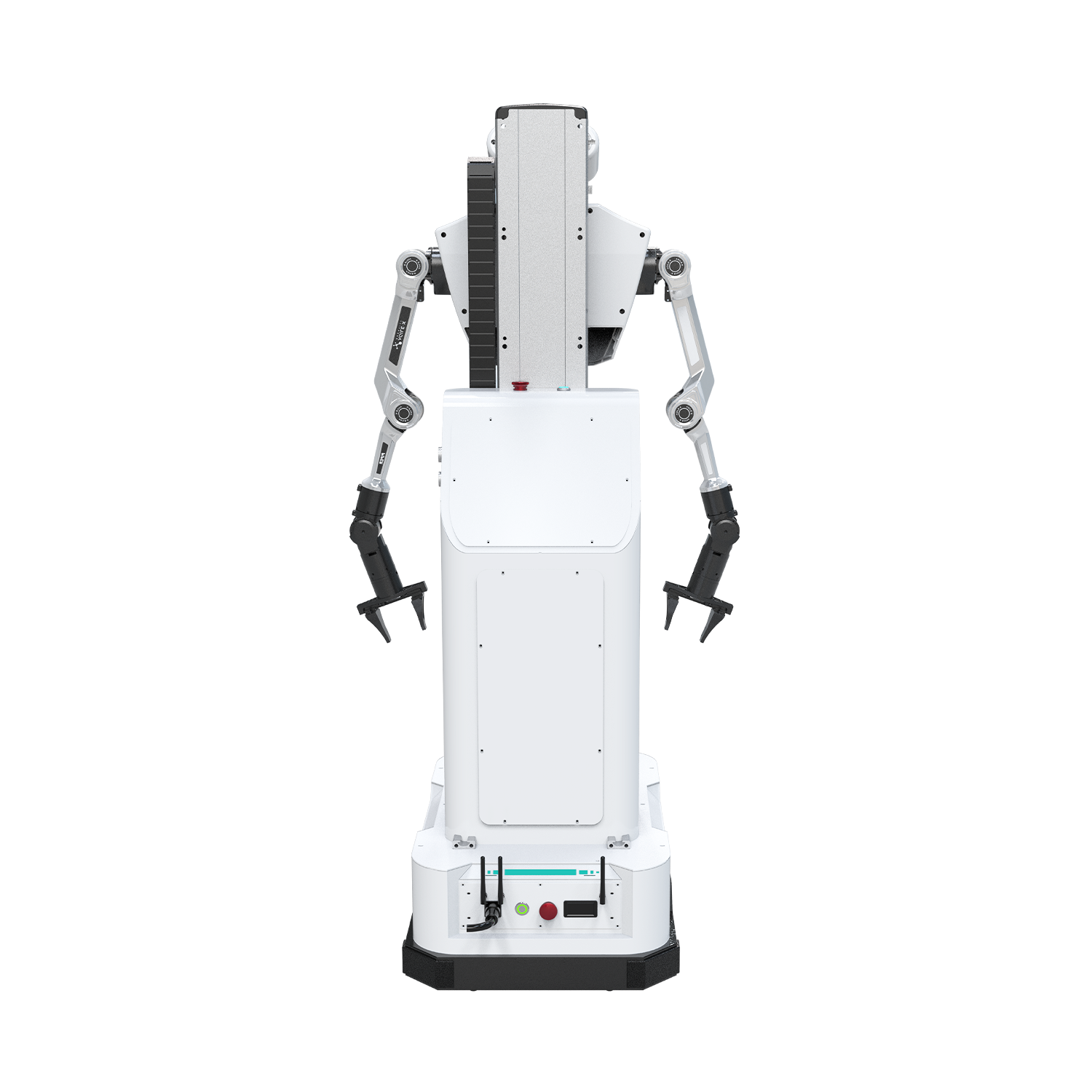

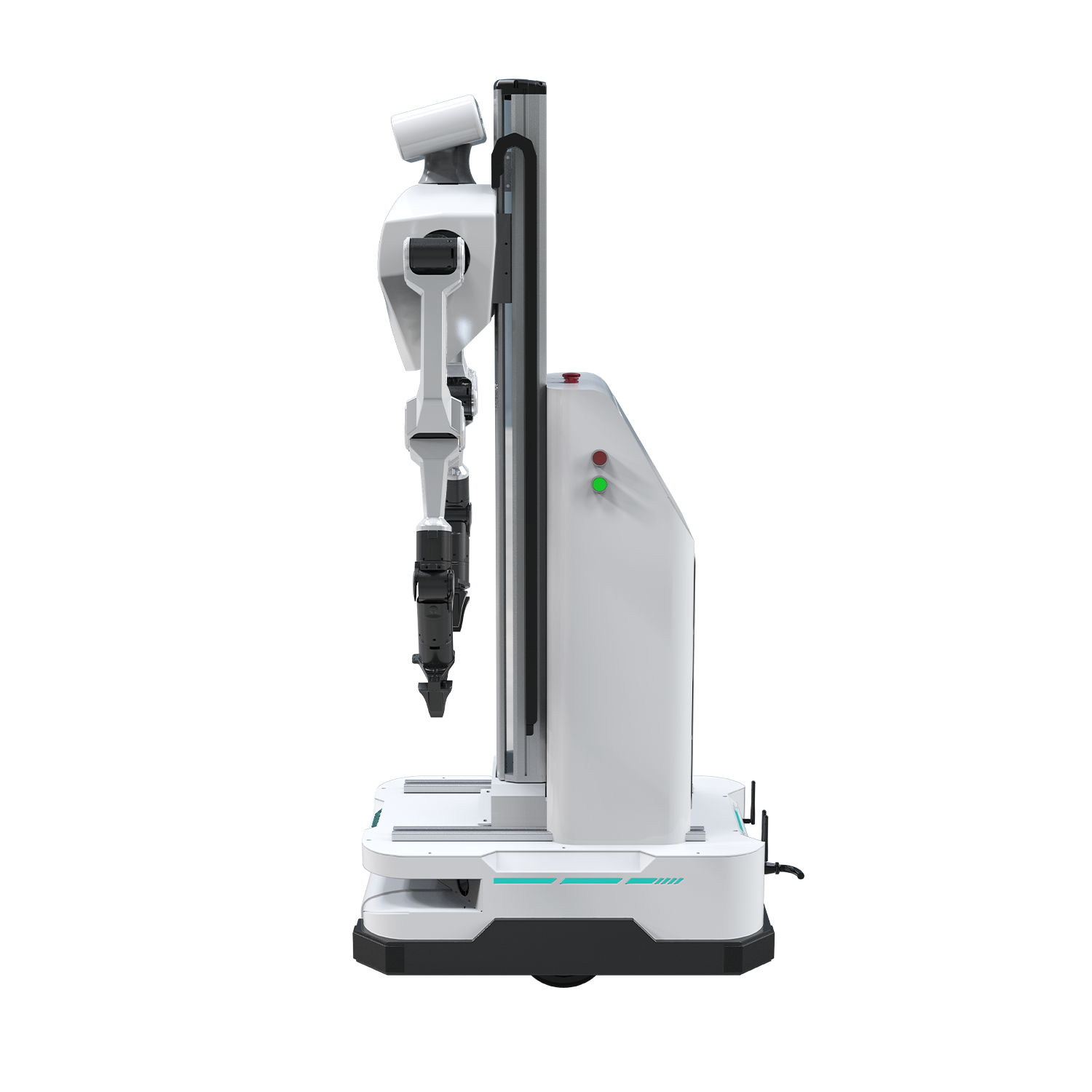

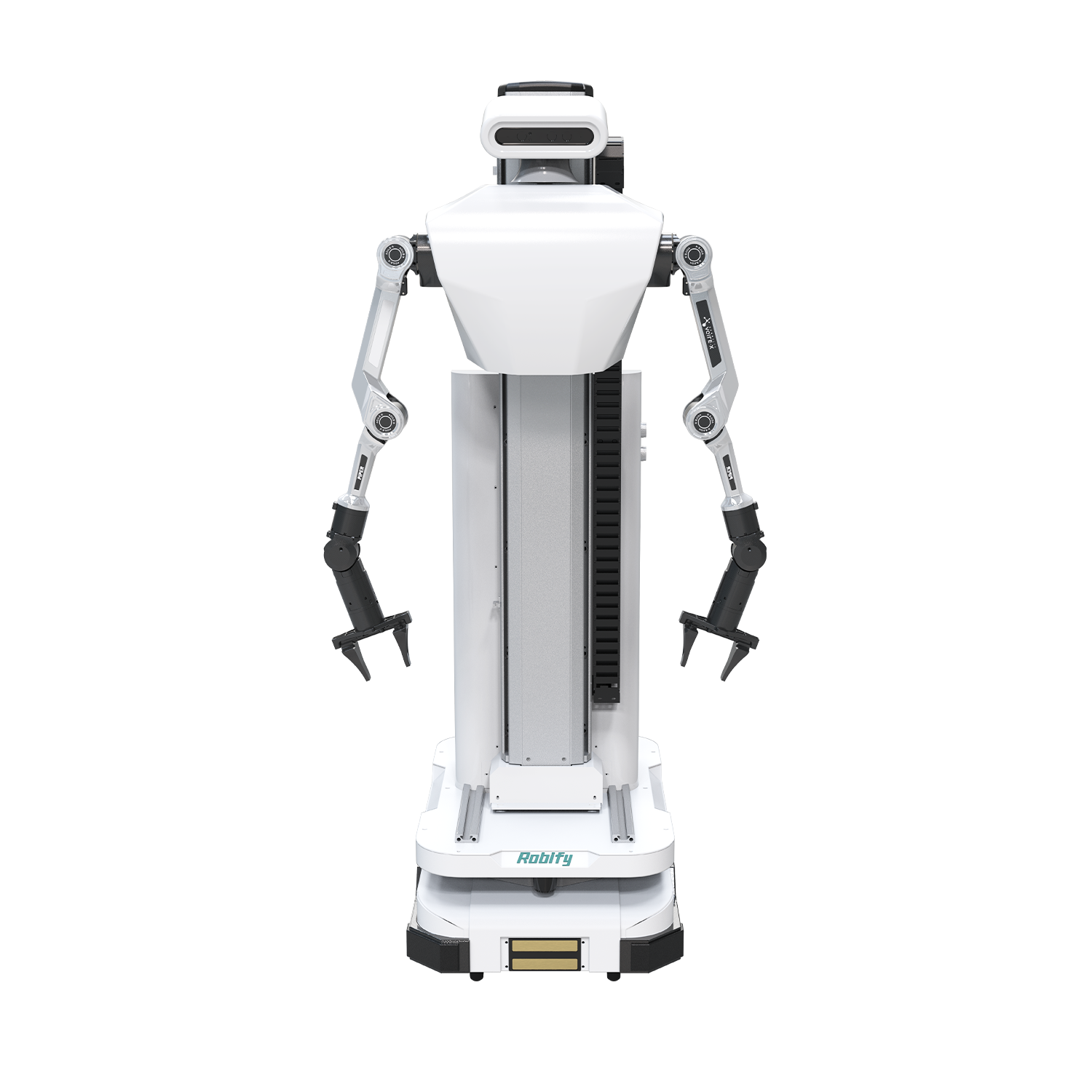

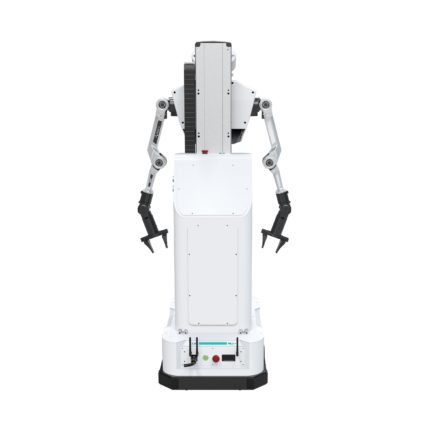

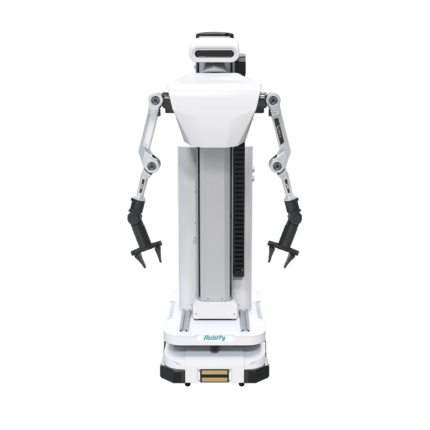

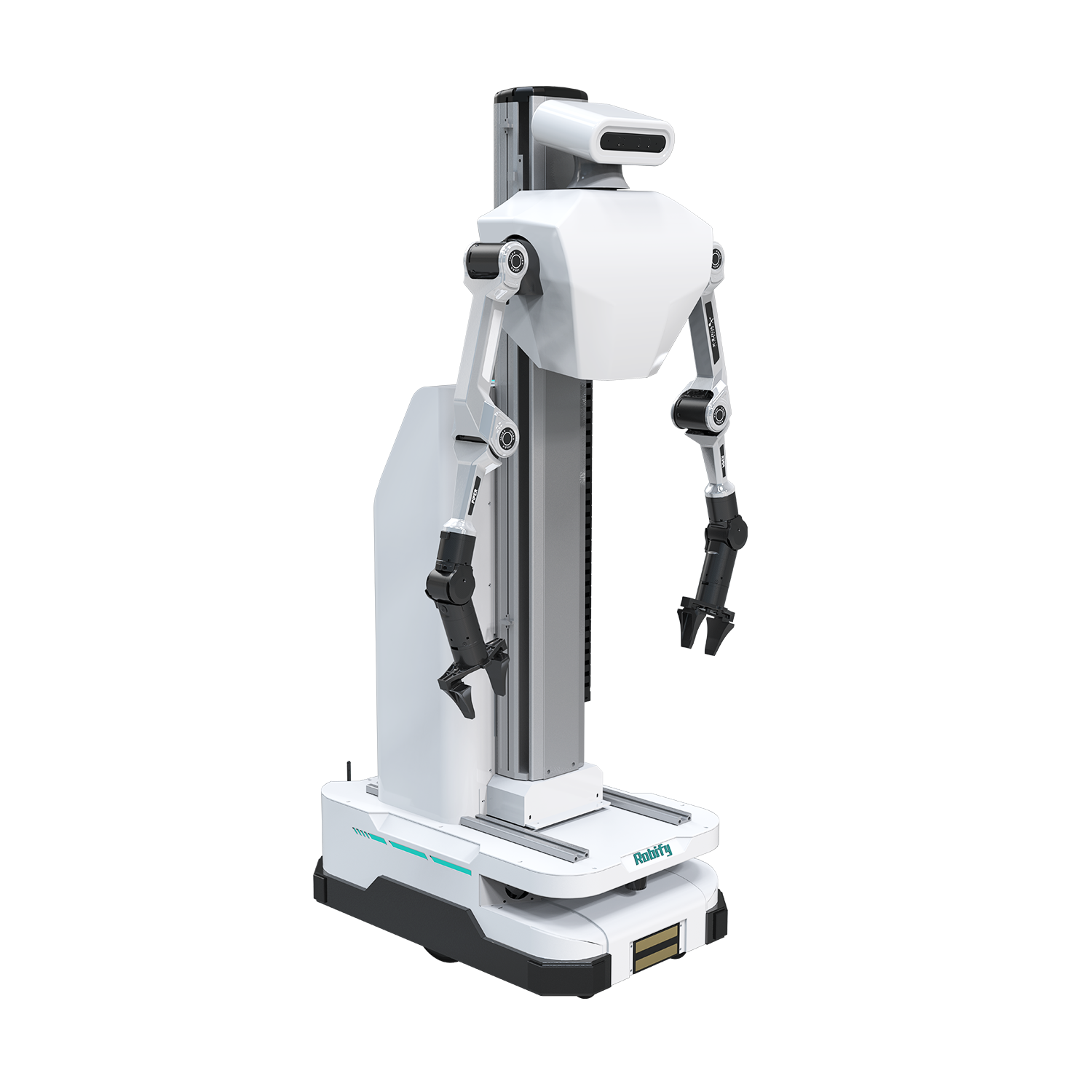

RobiDuo-B65 – Mobile Lifting Bimanual Robot
Short Description
RobiS is the autonomous driving robotics research platform of choice for universities, tech labs, and innovators. Develop autonomous driving systems, test SLAM algorithms, or integrate ROS/Autoware workflows – all on a customizable 4WD all-terrain robot. Supports Ackerman or differential steering, 20kg vertical payload, and remote monitoring.
✅ Customizable: Adapt chassis, sensors, and software for your R&D or industrial needs.
✅ ROS/Autoware Ready: Pre-configured for seamless integration with open-source autonomous driving frameworks.
✅ 360° Awareness: IMU, RTK, LiDAR + RGBD depth camera ensures no-blind-spot navigation.
✅ Research Optimized: Mini computer (i7 + RTX 1650) handles heavy computation for autonomous driving AI.
✅ Long-Lasting: 4-hour battery + remote monitoring for uninterrupted experiments.
Buy it with:
Dual-Arm AGV with Lifting Platform
Our AGV combines autonomous navigation with dual-arm gripping and integrated lifting—transforming how you move, pick, and place materials. Fully automated AGV with dual-arm manipulation and mobile lifting platform—engineered for factory floors and field operations.
Vison
Simultaneous Localization and Mapping (SLAM) for environment modeling. Autonomous Navigation with global and local path planning. Dynamic Obstacle Avoidance using onboard perception.
AGV
Simultaneous Localization and Mapping (SLAM) for environment modeling. Autonomous Navigation with global and local path planning. Dynamic Obstacle Avoidance using onboard perception.
In-Place Rotation
Handle any load, anywhere. Grasp, lift, and move materials with precision—no human intervention required. Automate repetitive tasks and reduce labor costs.
Indoor & Outdoor
Handle any load, anywhere. Grasp, lift, and move materials with precision—no human intervention required. Automate repetitive tasks and reduce labor costs.
Obstacle Avoidance
Auto-Recharge
Grasp
SLAM
Pitch
Virtual Wall

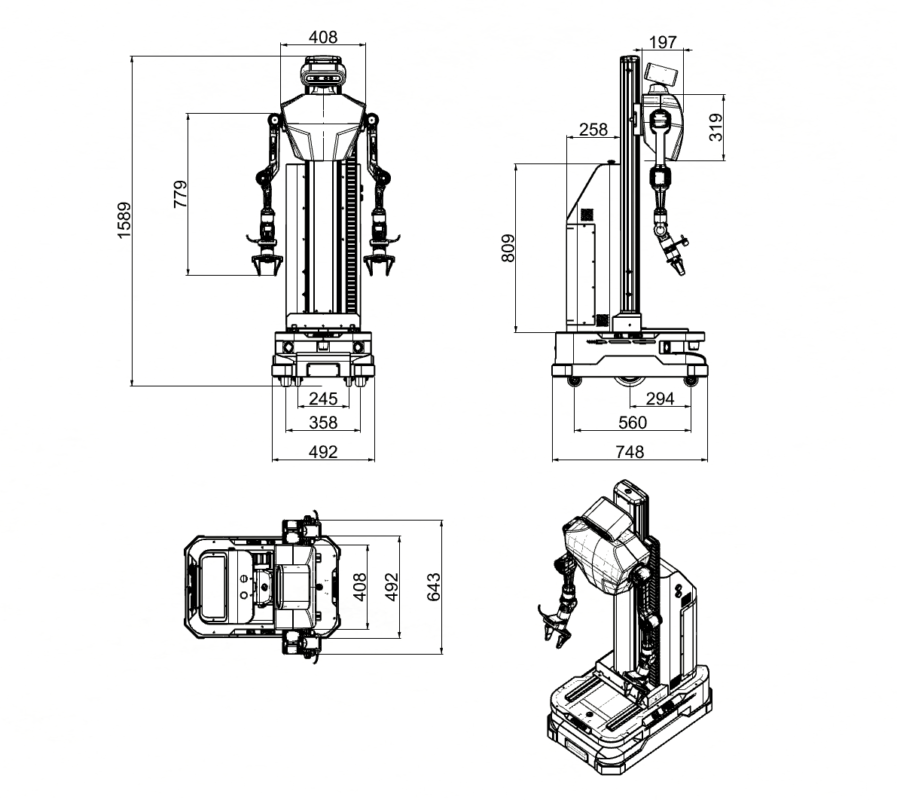

Dimensional Diagram
Product Parameters
| Chassis Dimensions | 475*553*315 (mm) |
| Navigation Accuracy | +30mm |
| Protection Grade | IP22 |
| Operating Temperature | -10-60° |
| Battery Capacity | 24V 20AH (expandable) |
| Battery Life | >4H |
| Charging Time | <3H |
| Maximum Speed | 1.5M/S |
| Vertical Load | 120KG |
| Motor Power | 150W*2 |
| Chassis Dimensions |
474*553*315(mm) |
|---|---|
| Chassis Weight |
46 kg |
| Material |
Q235 |
| Vertical Load |
120 kg |
| Encoder Resolution |
4096 lines |
| Protection Grade / IP Rating |
IP22 |
| Operating Temperature |
-10-60° |
| Charging Time |
<3H |
| Motor Power |
150W*2 |
| Motor Type |
Hub Motor (Brushless DC) |
| Maximum Speed |
1.5M/S |
| Theoratical Operating Time |
＞4 h |
| Battery Capacity |
24 V 20 Ah (lithium battery, expandable) |
| External Power Supply |
24V/19V/12V |
| Emergency Stop Method |
Remote emergency stop / Hardware emergency stop / Software emergency stop |
| System Support |
ROS / Windows / Ubuntu |
| Navigation Accuracy |
±30 mm (auxiliary positioning accuracy: 10 mm) |
| Navigation Protocol |
MQTT |
| Remote Control Mode |
2.4G remote controller |
| Obstacle Avoidance Mode |
Support obstacle stopping & obstacle avoidance |
| Navigation Mode |
Point-to-point, fixed route, trajectory, etc. |
| Turning Radius |
In-place rotation (0 turning radius) |
| Motor Reduction Ratio |
1:51 |
