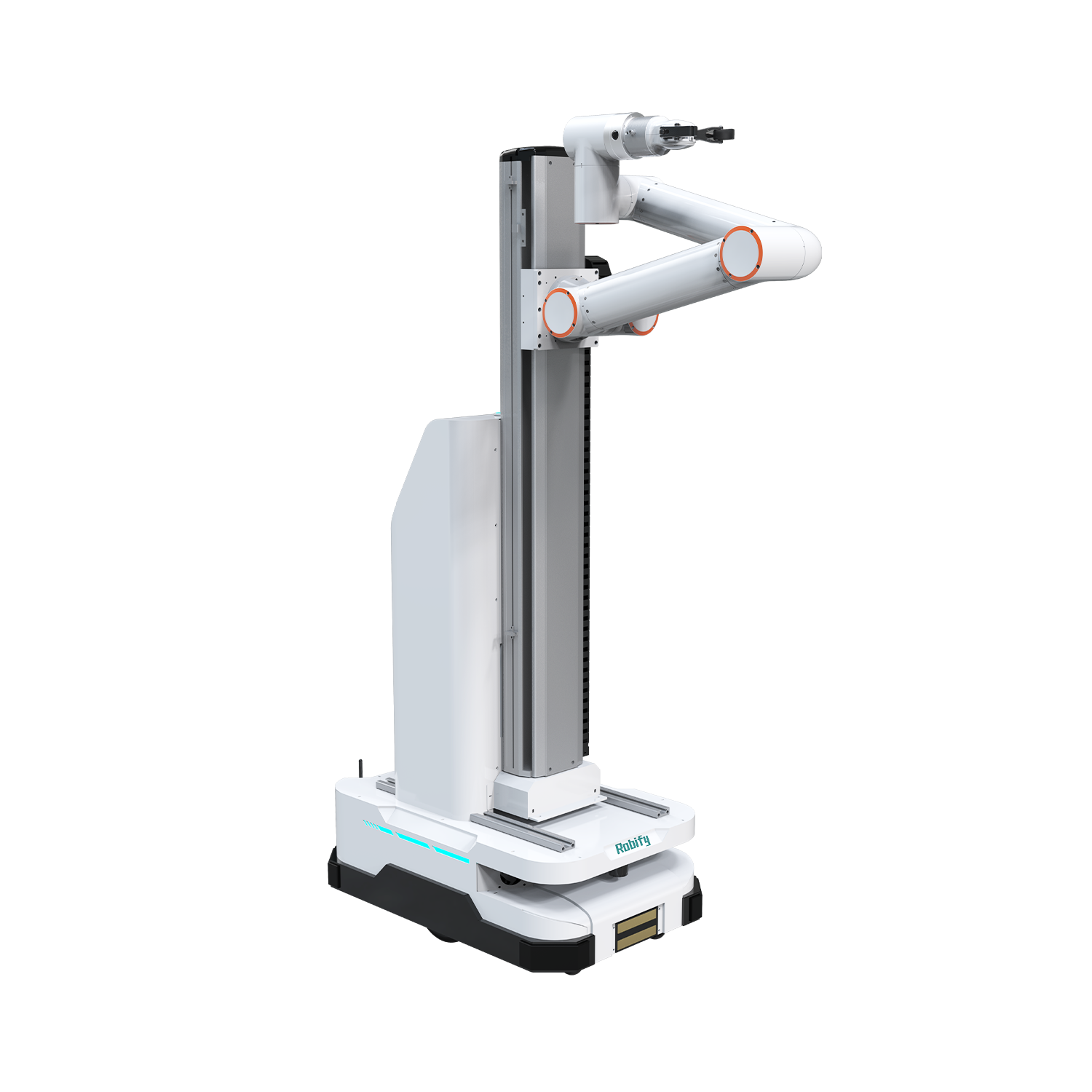

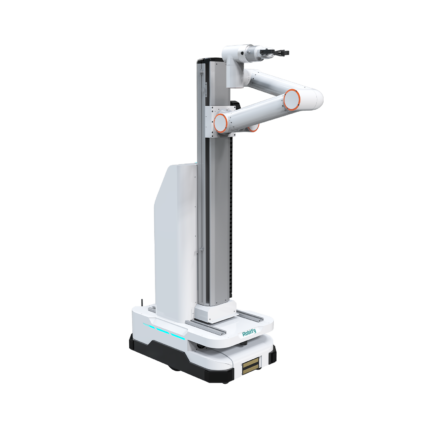

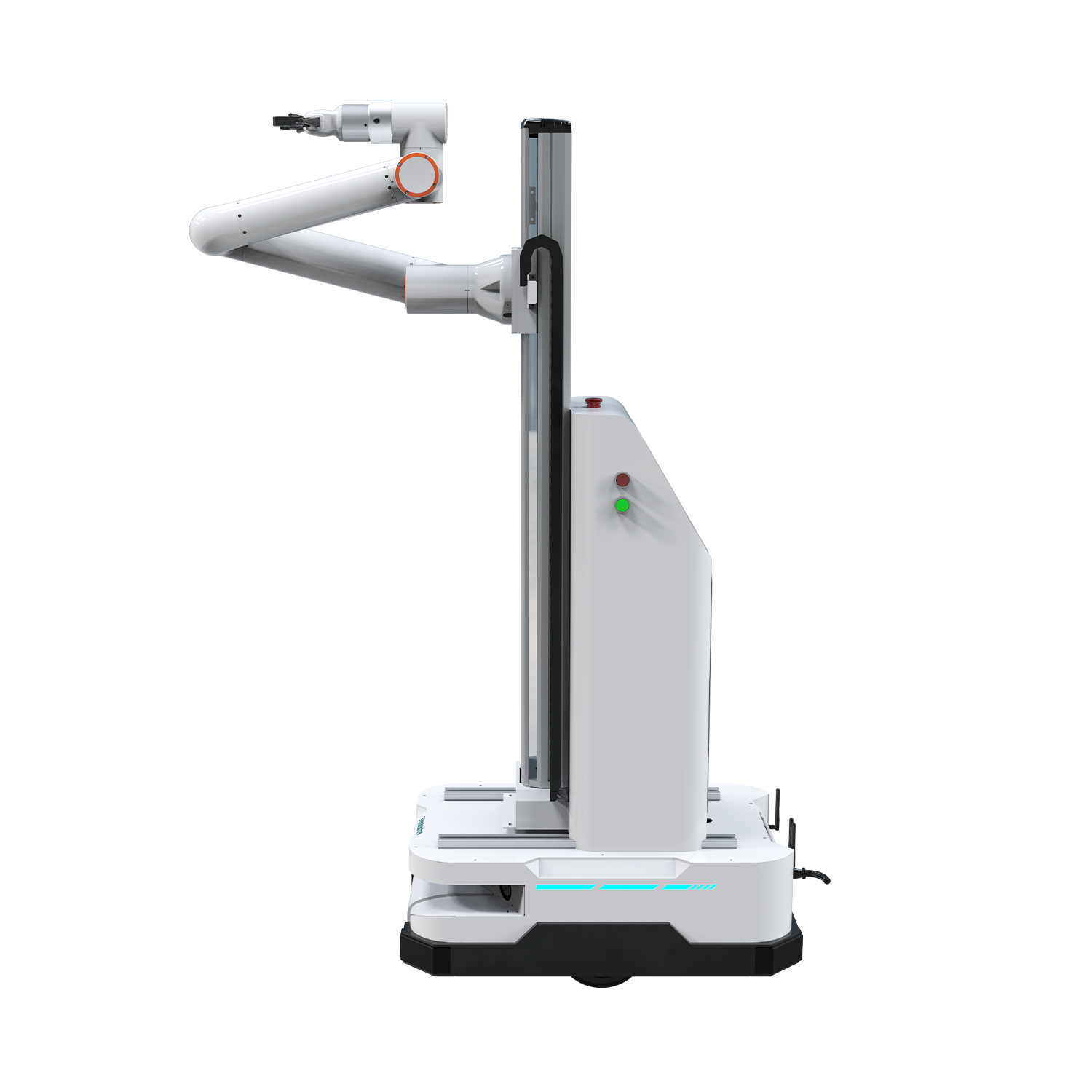

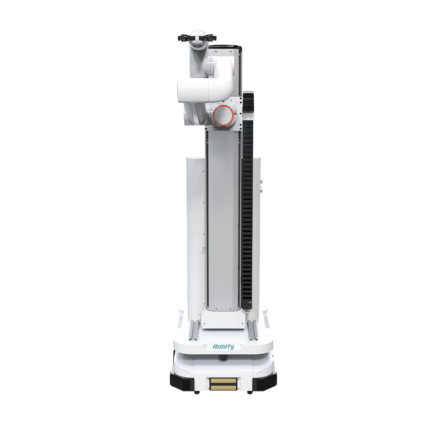

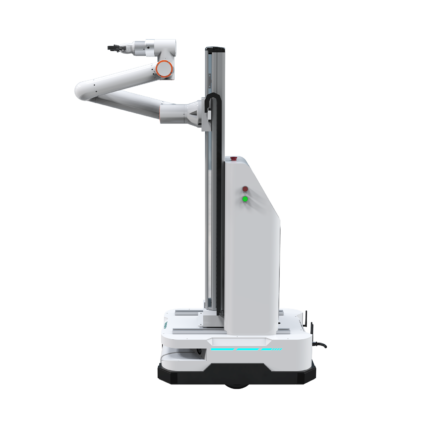

RobiSolo-L – Mobile Lifting Arm
Short Description
RobiSolo-L custom industrial robot combines the precision of a 6-axis robotic arm with autonomous mobile platform capabilities, delivering a comprehensive automation solution for modern manufacturing and logistics operations. This mobile manipulator robot integrates high-precision navigation, vertical lifting capabilities, and intelligent obstacle avoidance into a single, programmable platform designed to maximize efficiency while reducing operational costs.
6-Axis Robotic Arm with 1cm Accuracy, enabling complex material handling, assembly operations, and pick-and-place tasks.
1000mm Vertical Motorized Lift Platform provides a full meter of vertical travel, dramatically expanding the robot’s operational envelope. RobiSolo-L enables multi-level warehouse operations, tall rack access, and dynamic height adjustments without additional infrastructure—eliminating the need for fixed gantries or scaffolding.
High-Precision LiDAR Navigation (±2-3cm), ensuring reliable autonomous operation in dynamic factory environments.
Buy it with:
Vertical load
120 KG
Runtime
>4H
Maximum speed
1.5 M/S
50% UP

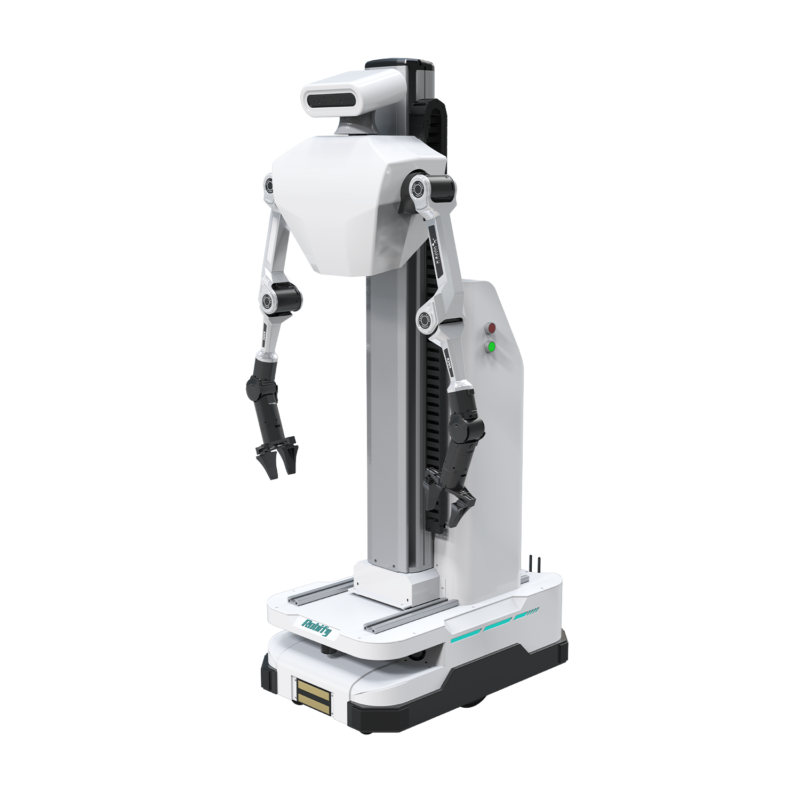

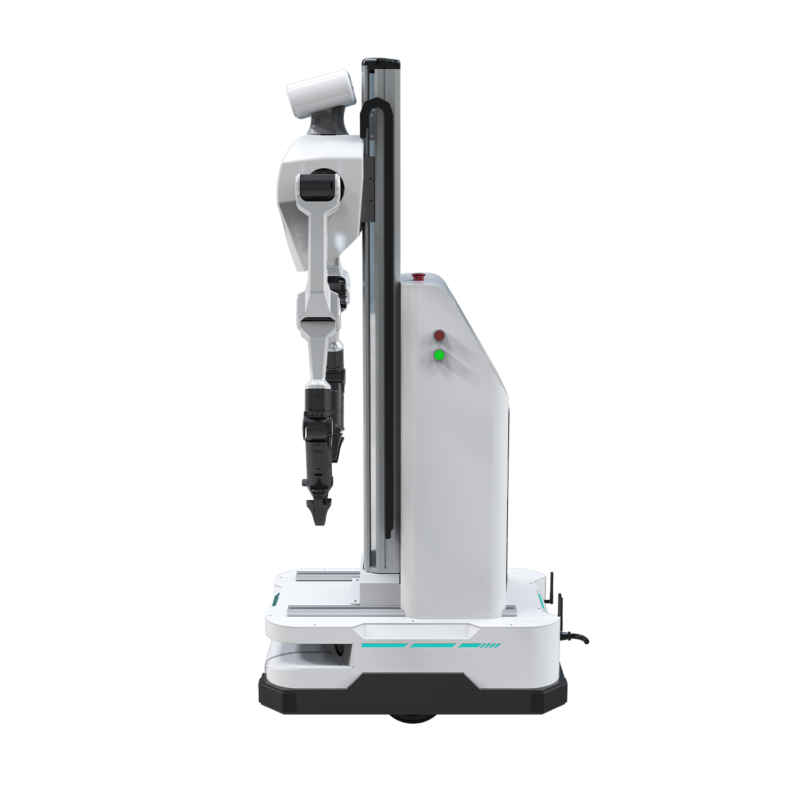

Dual-bionic-arm & differential drive AGV
with 30% lower O&M costs, serving as a core "space-precision-load" solution for smart factories.
Multi-Modal Grasping
+0.8mm accuracy & 6-DOF
1000mm vertical lift, 50kg capacitywith ROS, Python, and C++

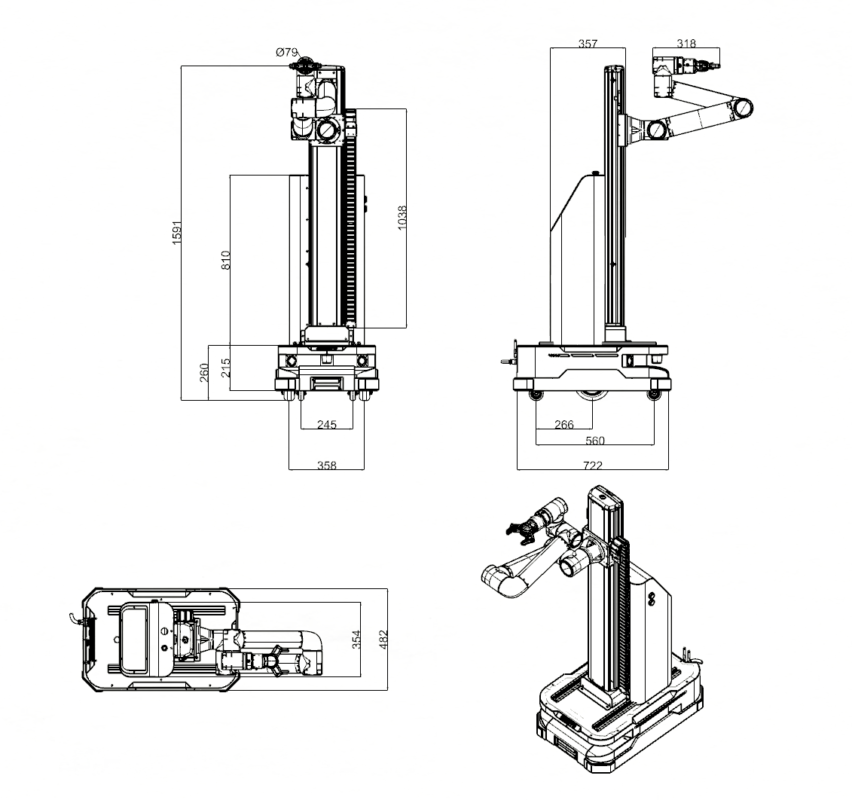

Dimensional Diagram
| Chassis Dimensions | 475*553*315 (mm) |
| Navigation Accuracy | +50mm |
| Auxiliary Positioning Accuracy | +10mm |
| Operating Temperature | -10-60° |
| Battery Capacity | 24V 20AH (expandable) |
| Battery Life | >3H |
| Charging Time | <3H |
| Maximum Speed | 1.5M/S |
| Vertical Load | 120KG |
| Motor Power | 150W*2 |
Product Parameters
| Chassis Dimensions |
474*553*315(mm) |
|---|---|
| Chassis Weight |
46 kg |
| Material |
Q235 |
| Vertical Load |
120kg |
| Number Of Encoder Lines |
4096 lines |
| Protection Class |
IP22 |
| Operating Temperature |
-10-60° |
| Charging Time |
<3H |
| Motor Power |
150W*2 |
| Motor Type |
Hub Motor (Brushless DC) |
| Maximum Speed |
1.5m/s |
| Theoretical Range |
＞4 h |
| Battery Capacity |
24 V 20 Ah (lithium battery, expandable) |
| External Power Supply |
24 V / 19 V / 12 V |
| Emergency Stop Method |
Remote emergency stop / Hardware emergency stop / Software emergency stop |
| System Support |
ROS / Windows / Ubuntu |
| Navigation Accuracy |
±50 mm |
| Auxiliary Positioning Accuracy |
±10 mm |
| Navigation Protocol |
MQTT |
| Remote Control Mode |
2.4G remote controller |
| Obstacle Avoidance Mode |
Support obstacle stopping & obstacle avoidance |
| Navigation Mode |
Point-to-point, fixed route, trajectory, etc. |
| Turning Radius |
In-place rotation (0 turning radius) |
