Factory Heavy‑load Handling Robot

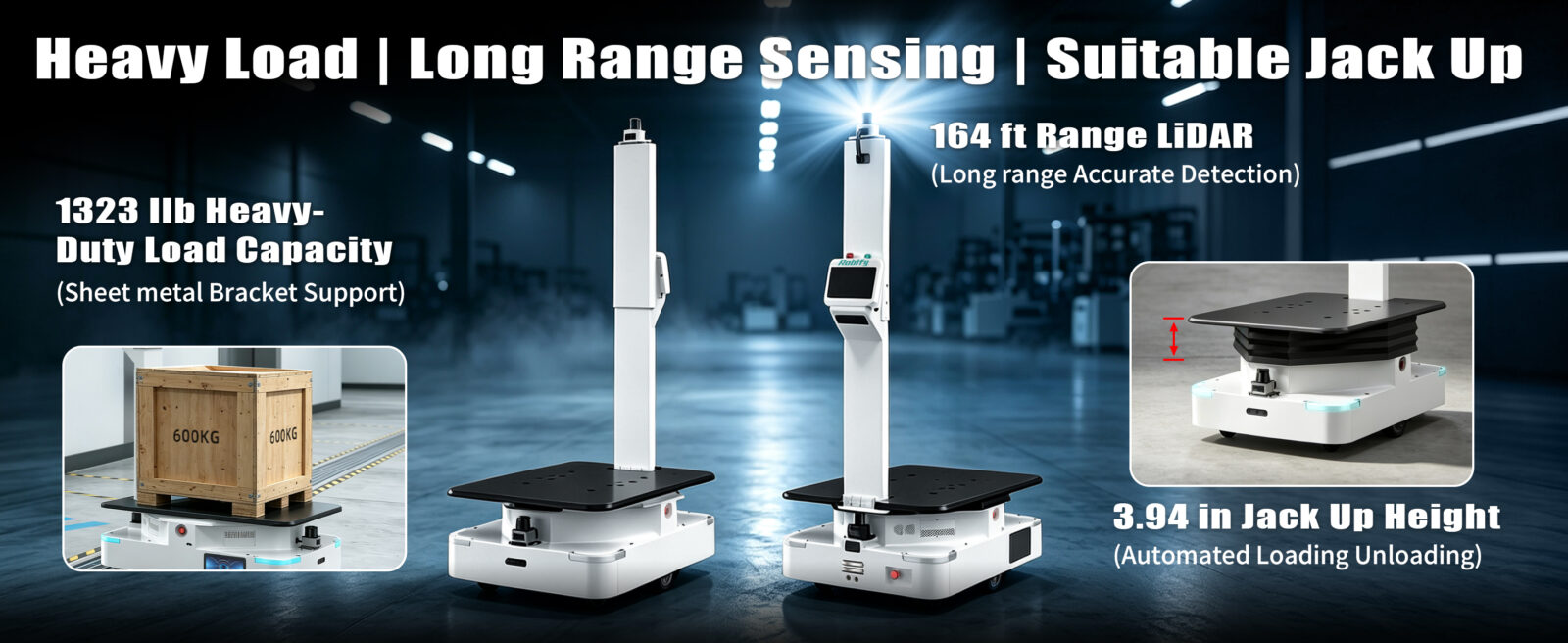

● 600 kg Ultra‑High Payload Capacity

● Unique lifting function enables automatic loading and unloading. It can lift racks up to 10 cm to complete cargo transportation automatically.

● Industry‑exclusive elevator control system, capable of independently calling elevators and completing cross‑floor delivery tasks.

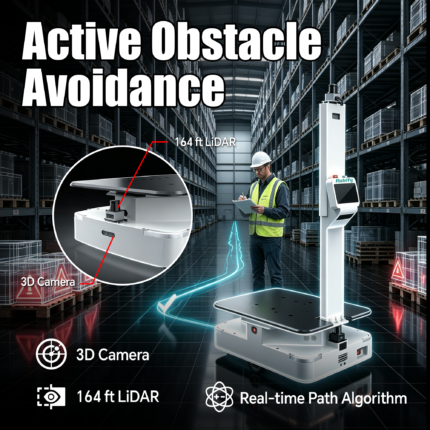

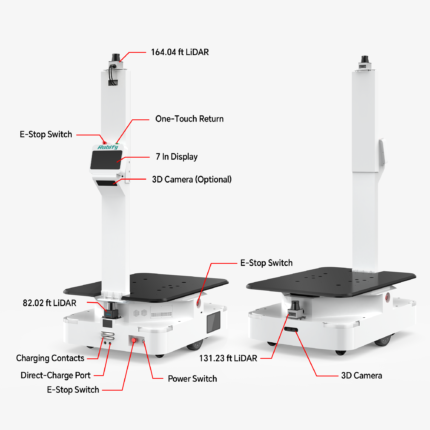

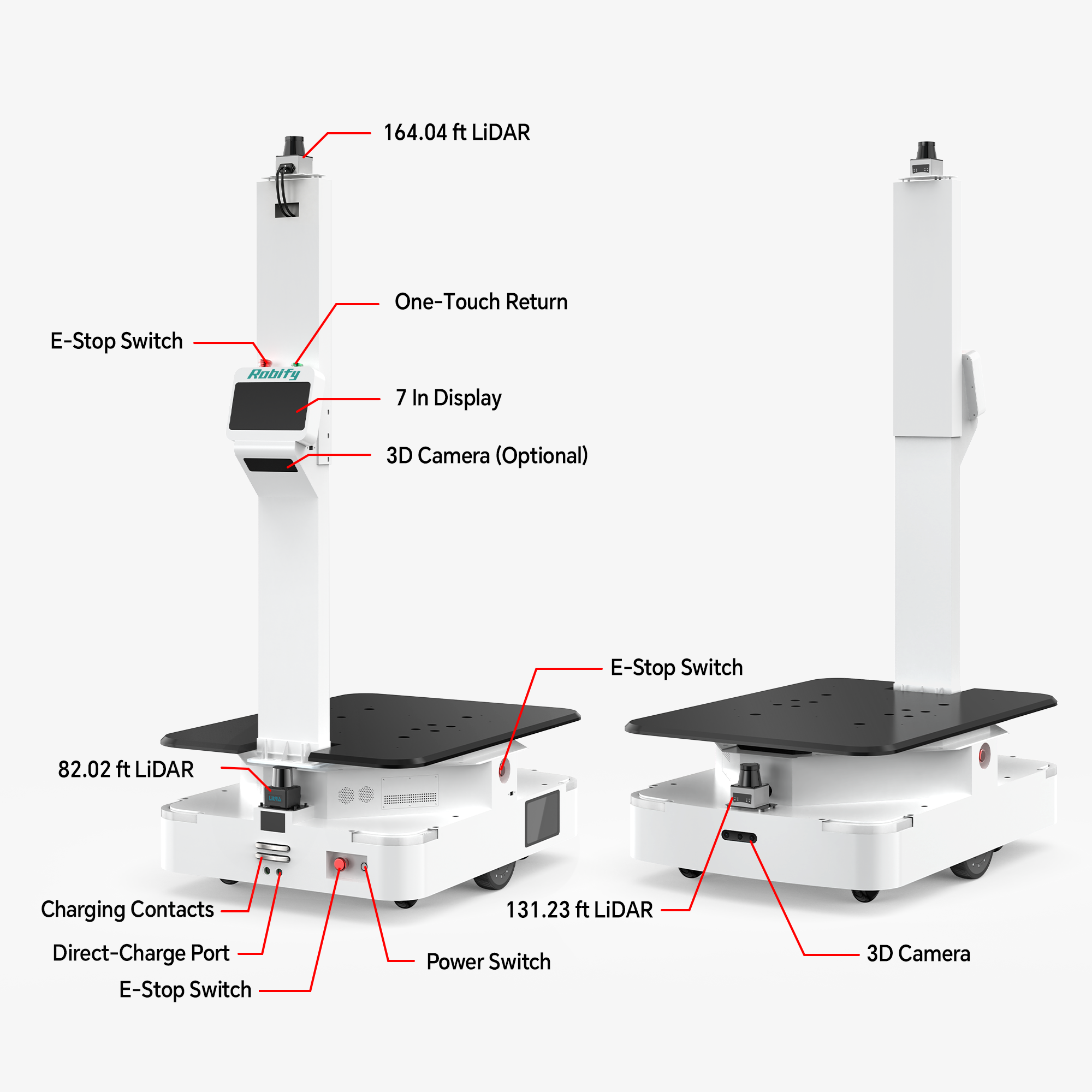

● Equipped with 3D camera and 60‑meter LiDAR, it realizes three‑dimensional intelligent obstacle avoidance and real‑time perception of the surrounding dynamic environment.

● Equipped with a 38.4V/27Ah high-performance battery, it features excellent high-temperature resistance with zero explosion and zero combustion risks. Boasting an ultra-long service life, the battery achieves more than 2000 discharge cycles.

● Multiple remote calling modes are available, ready‑to‑use whenever you need.

Buy it with:
Categories: ,

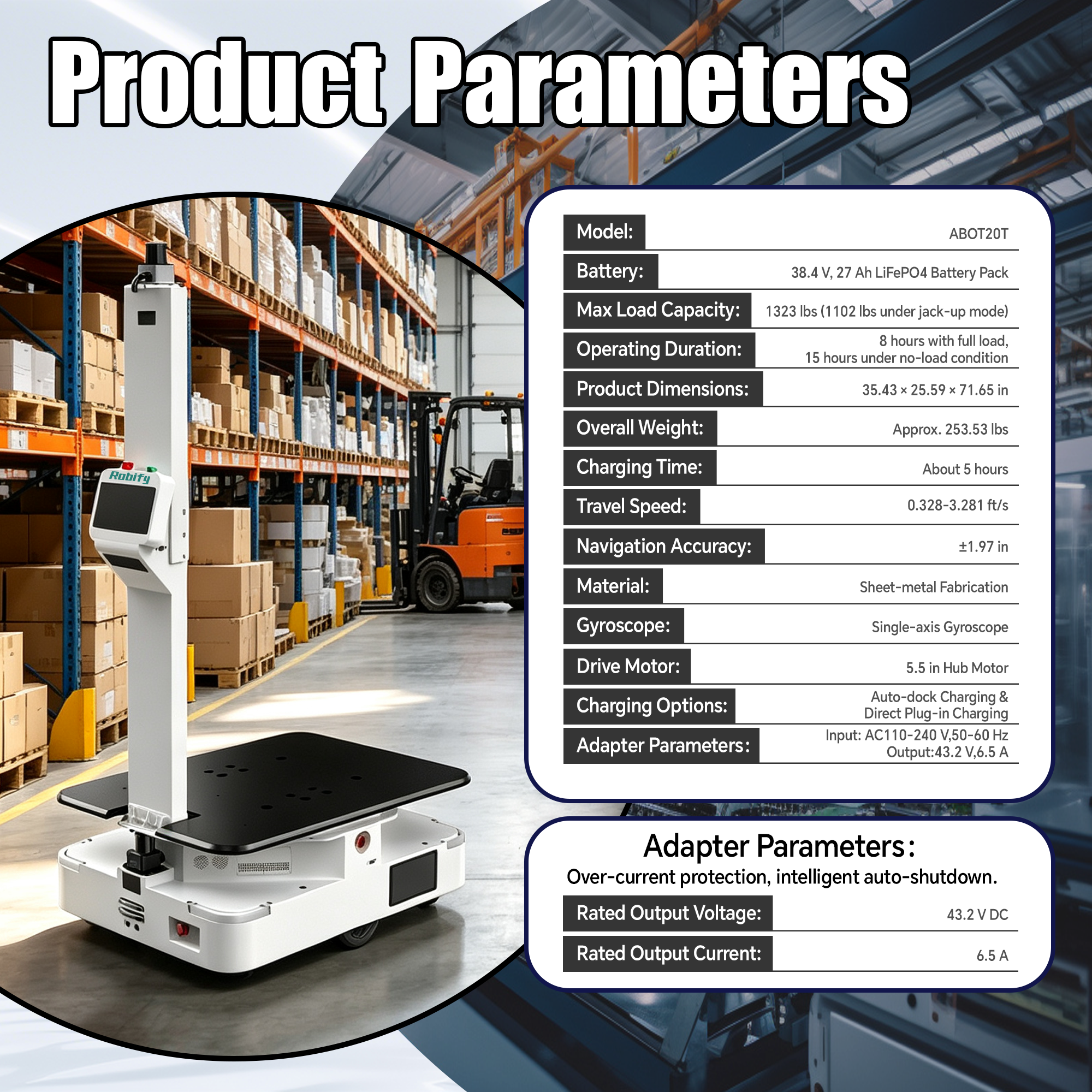

Model

ABOT20T

Battery

38.4 V, 27 Ah LiFePO4 Battery Pack

Max Load Capacity

1323 lbs (1102 lbs under jack‑up mode)

Operating Duration

8 hours with full load, 15 hours under no‑load condition

Product Dimensions

35.43 × 25.59 × 71.65 in

Overall Weight

Approx. 253.53 lbs

Charging Time

About 5 hours

Travel Speed

0.328‑3.281 ft/s

Navigation Accuracy

±1.97 in

Material

Sheet‑metal Fabrication

Gyroscope

Single‑axis Gyroscope

Drive Motor

5.5 in Hub Motor

Charging Options

Auto‑dock Charging & Direct Plug‑in Charging

Adapter Parameters

Input: AC110‑240 V,50‑60 Hz,Output:43.2 V,6.5 A

Charging Station Parameters

Over‑current protection, intelligent auto‑shutdown

Rated Output Voltage

43.2 V DC

Rated Output Current

6.5 A
