Key Features
1435*900*685
Dimensions (mm)
310kg
Weight
3H
Battery Life
300kg
Vertical load
1.4m/s
Max Speed
30°(No-Load)
Climbing Angle

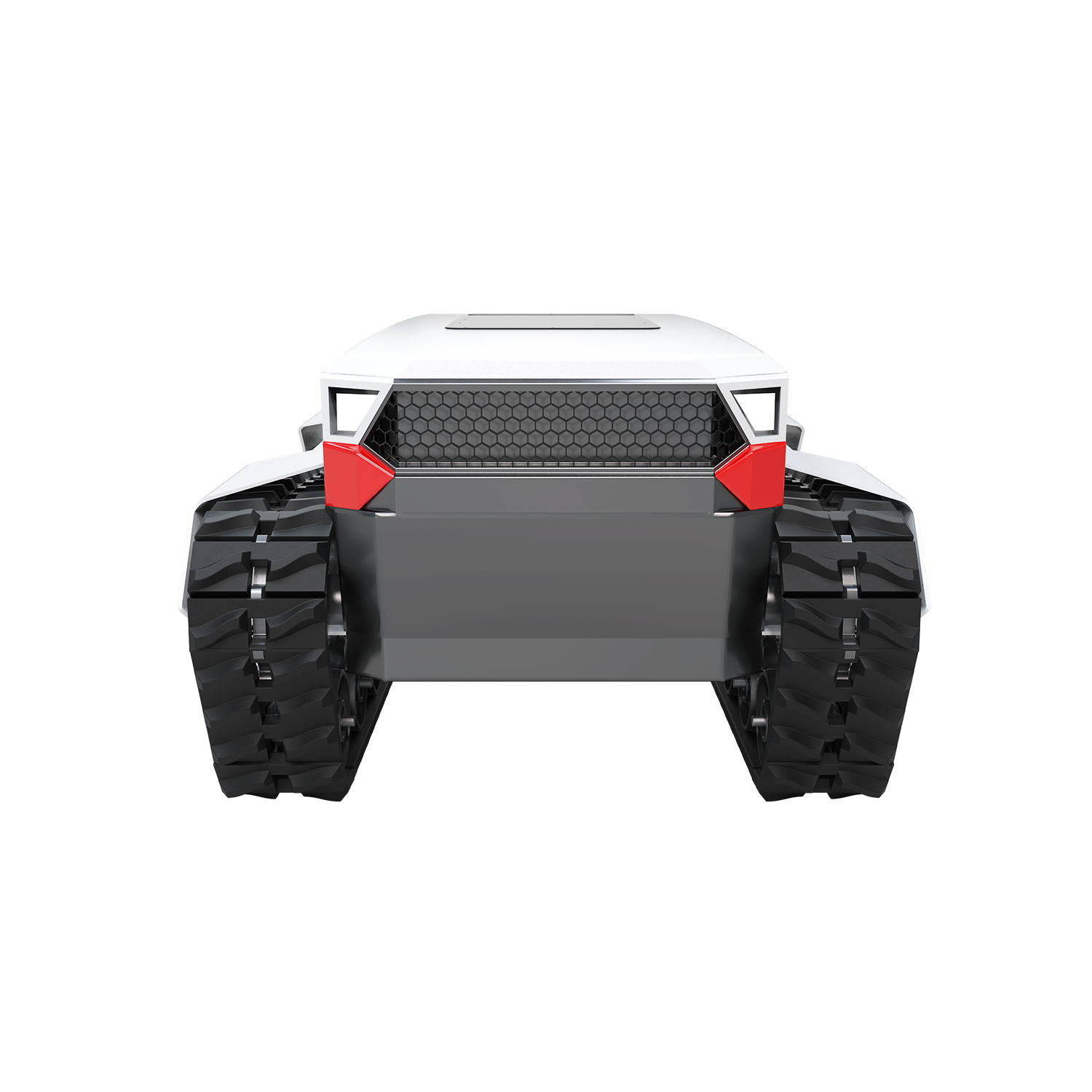

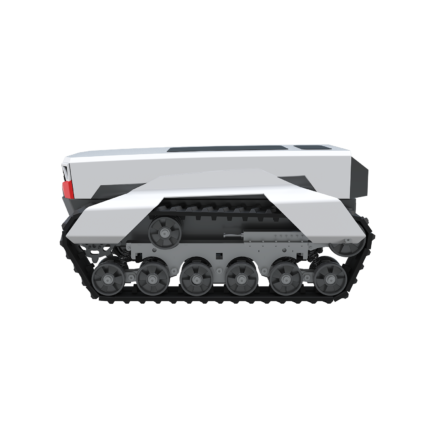

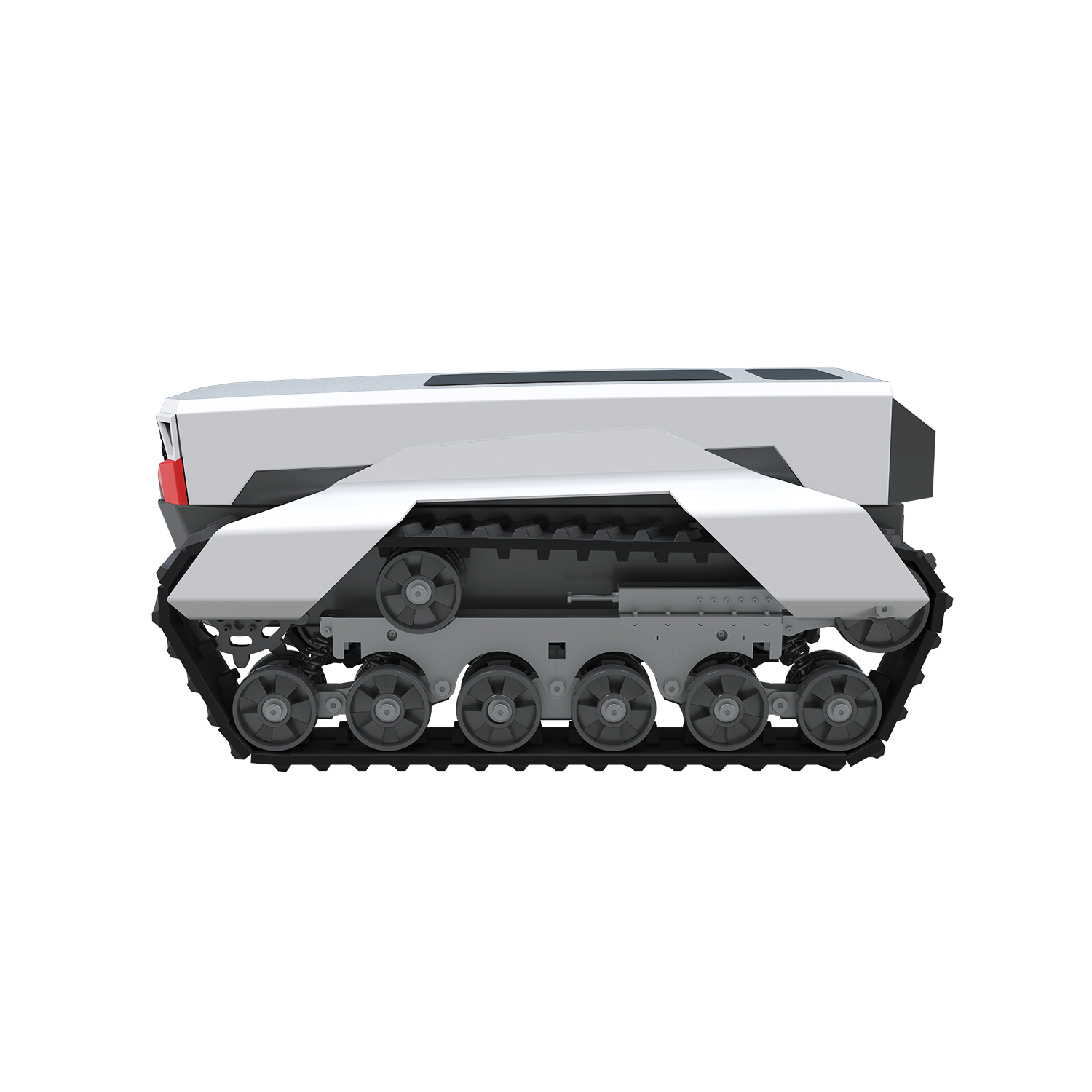

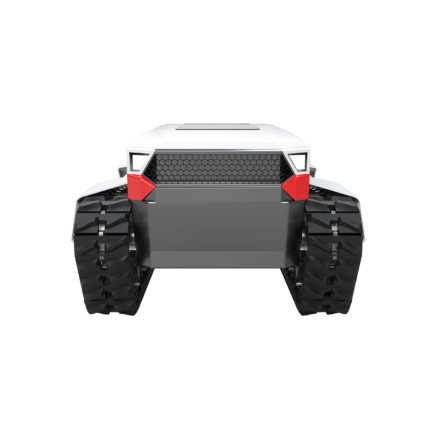

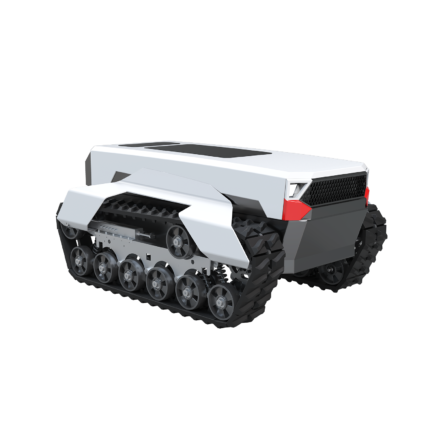

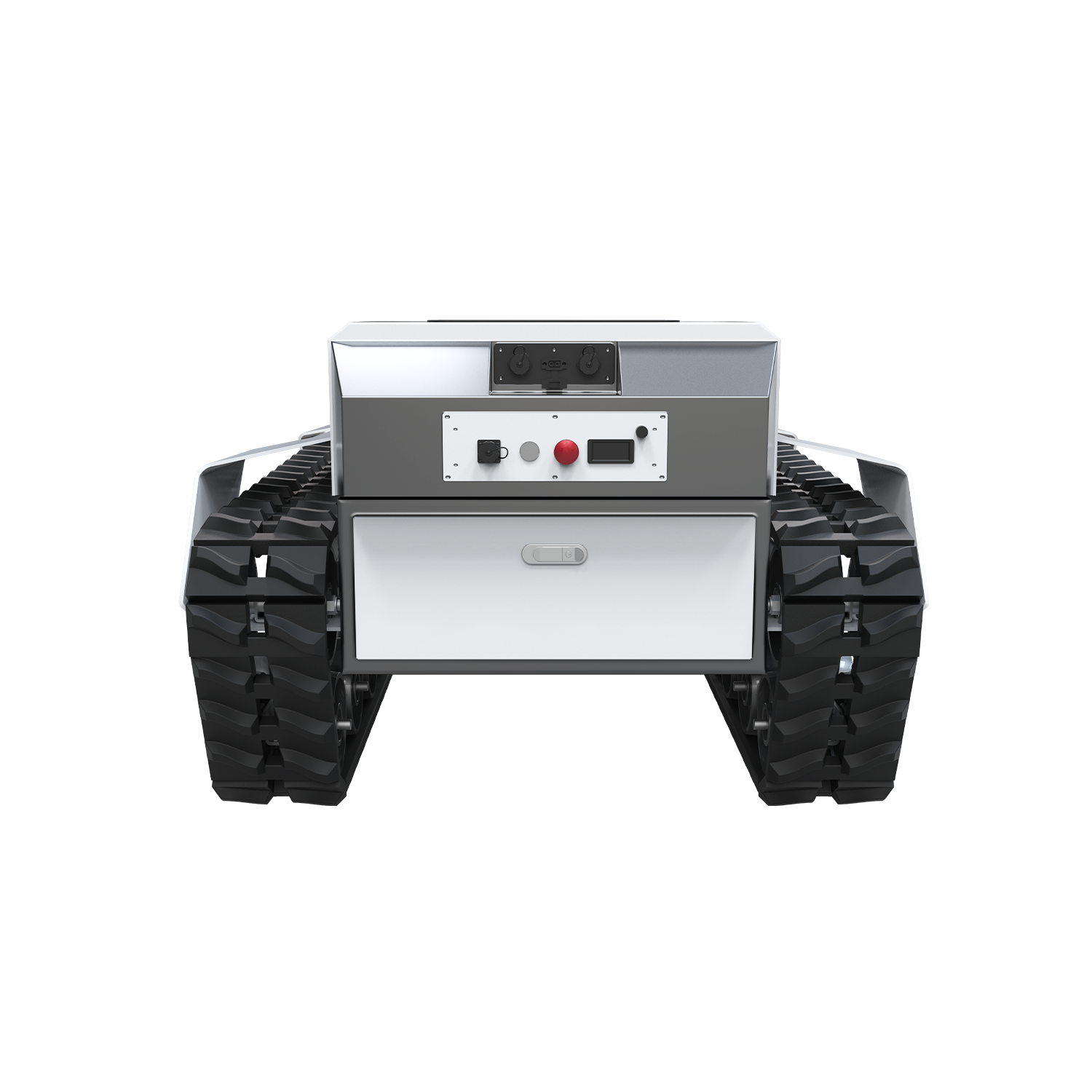

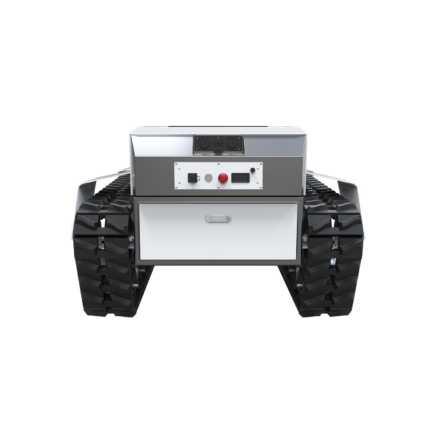

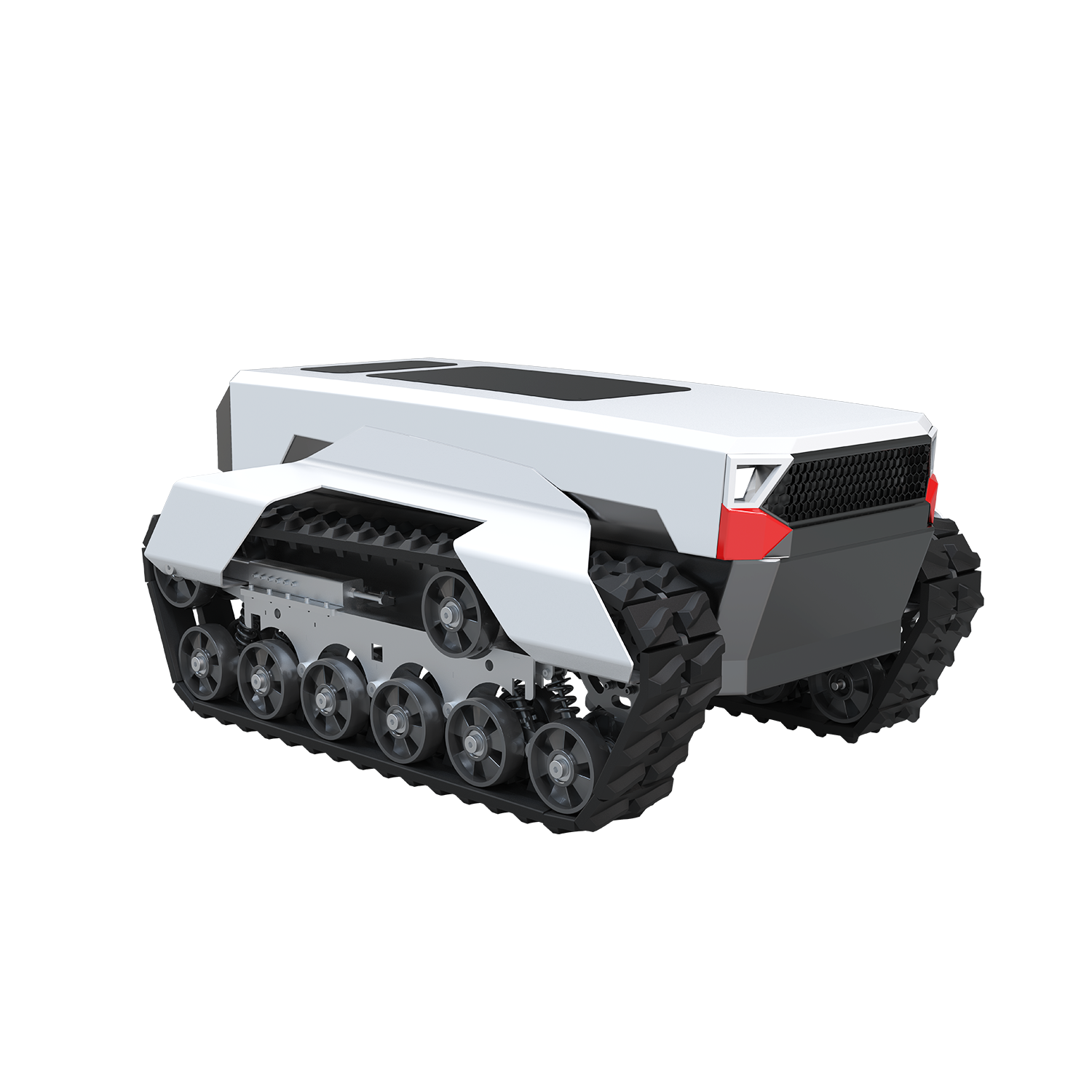

RobiTrac Tracked Mobile Robot | Obstacle Crossing Chassis
Short Description
RobiTrac 300kg load tracked industrial robot is a versatile solution for industrial automation across warehouses, factories, and logistics centers. Its 30° climbing ability and 12cm obstacle tolerance enable operation on uneven terrain, stairs, or construction sites.
The slope-holding servo and large-area ground contact ensure high stability during payload transport. With >3-hour battery life and auto-recharge, it minimizes downtime.
Features in-place rotation for precise maneuvering and supports CAN bus and 485 communication for industrial system integration. Compatible with ROS, Windows, and Ubuntu for custom automation programs.
Buy it with:
Series Tracked Mobile
The RobiTrac Mini Series Tracked Mobile Platform is a compact, all-terrain tracked chassis designed for indoor and outdoor use. It is primarily suited for outdoor off-road, agricultural, and underground tunnel applications.
Playload
300KG
Runtime
3H
Speed
1.4M/S
High Stability
in-place rotation & slope-holding servo 300kg load capacity trackedSupports ROS, Windows, Ubuntu
For Complex Terrains
12cm Vertical Steps & 30° Climbing3 hours continuous operationAutomatic charging dock

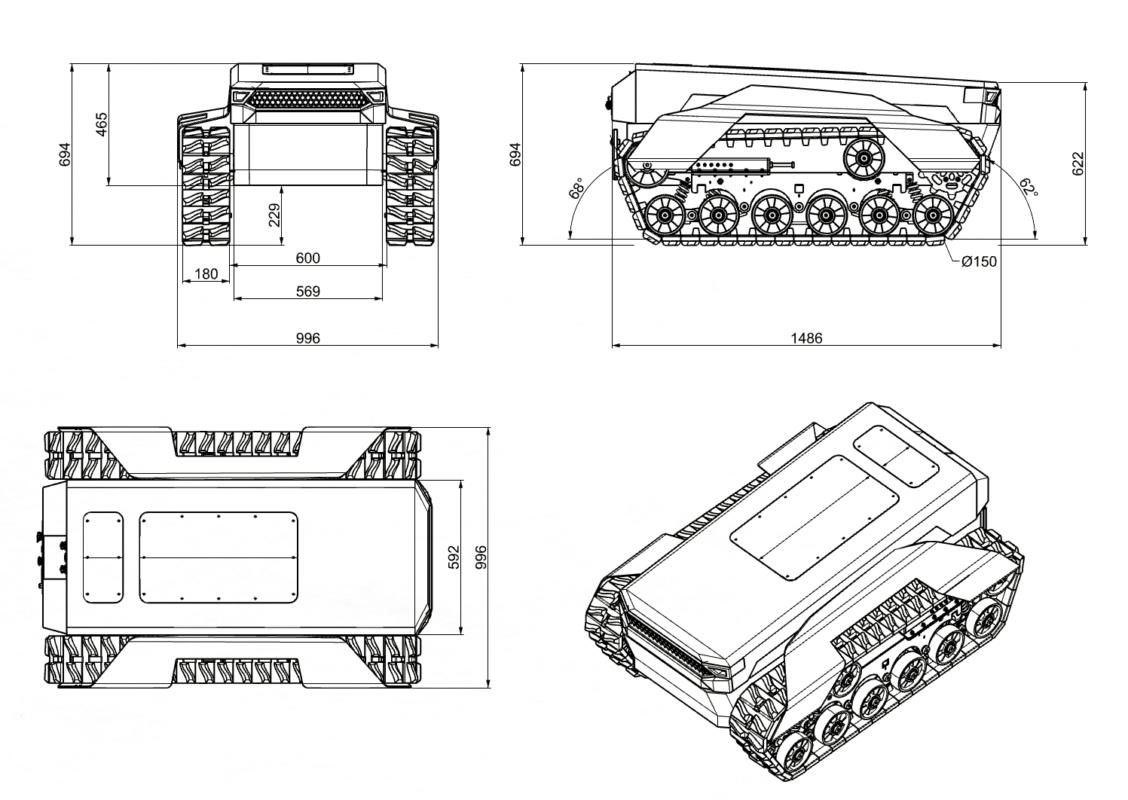

Dimensional Diagram
| Dimensions | 1435 * 900 * 685mm |
| Weight | 310 kg |
| Payload | 300 kg |
| Max Speed | 1.4 m/s |
| Battery Life | 3h |
| Battery Capacity | 48 V 40 Ah |
| Charging Time | 3h |
| System Supported | ROS / Win / Ubuntu |
Product Parameters
| Dimensions |
1435*900*685(mm) |
|---|---|
| Chassis quality |
310KG |
| Materials |
Q235 |
| Ground clearance |
200mm |
| Wheelbase |
720mm |
| Protection rating |
IP44 |
| Operating temperature |
-10-60° |
| Maximum speed |
1.4M/S |
| Turning radius |
Rotate in place (0°) |
| Battery type |
lithium iron phosphate battery |
| Battery capacity |
48V 40AH(expandable) |
| Battery life |
>3H |
| Voltage |
48V |
| Charging time |
3H |
| Charging method |
manual charging |
| Quick battery release |
support |
| MBattery BMS data |
Support (485 communication) |
| Motor control accuracy |
+1rpm |
| Vertical load |
300KG |
| Obstacle course (vertical steps) |
12CM |
| Hill-holding capability |
servo hill hold |
| External power supply |
48V/24V/19V/12V |
| Control mode |
CAN |
| System support |
ROS/WIN/UBUNTU |
| Emergency stop button |
support |
| Remote control |
2.4G remote control |
