Key Features
640*475*345
Dimensions (mm)
35kg
Weight
2.5H
Battery Life
50kg
Vertical load
1.8m/s
Max Speed

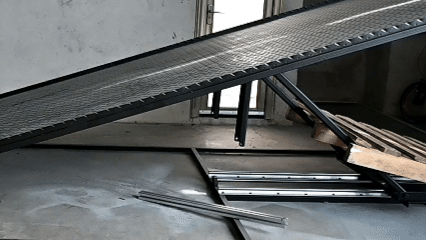

20°(No-Load)
Climbing Angle

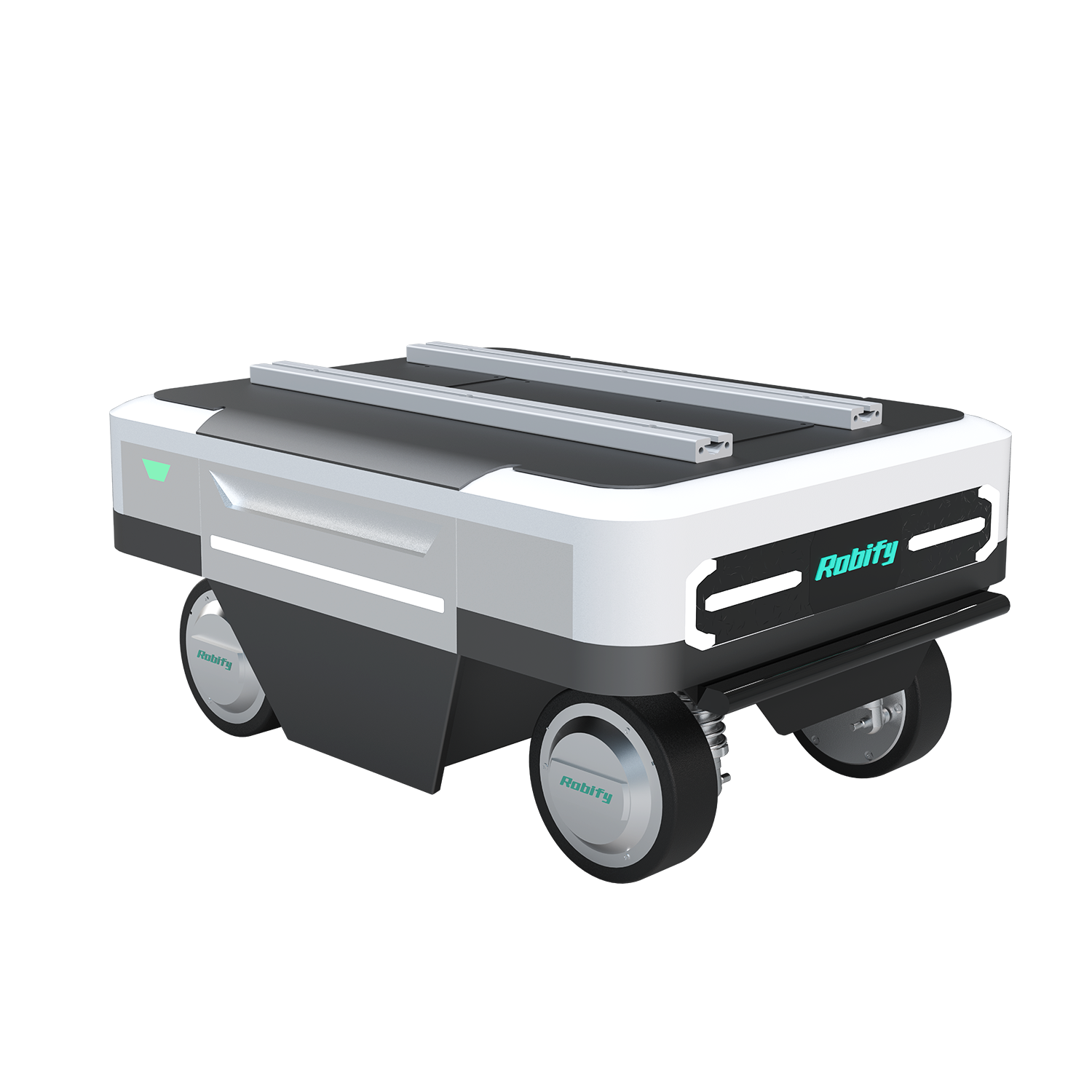

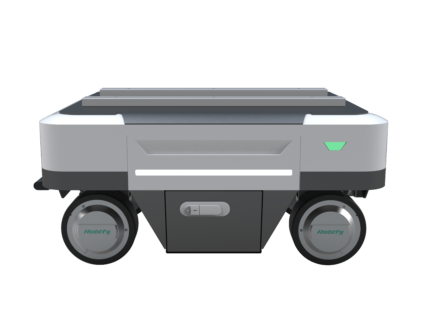

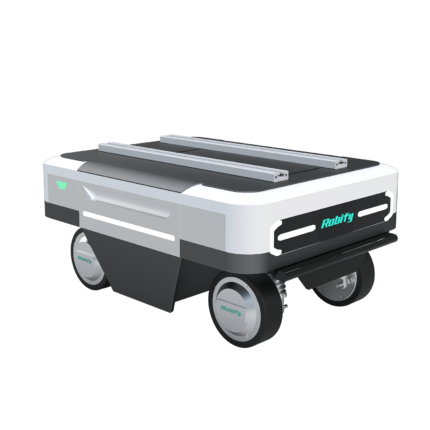

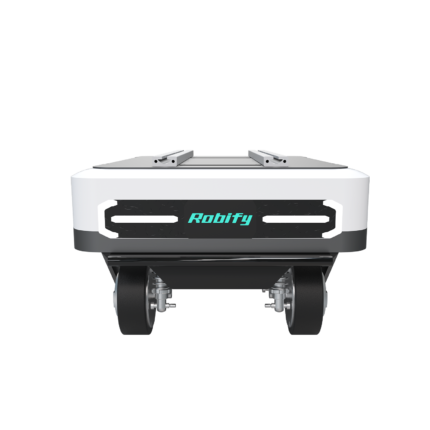

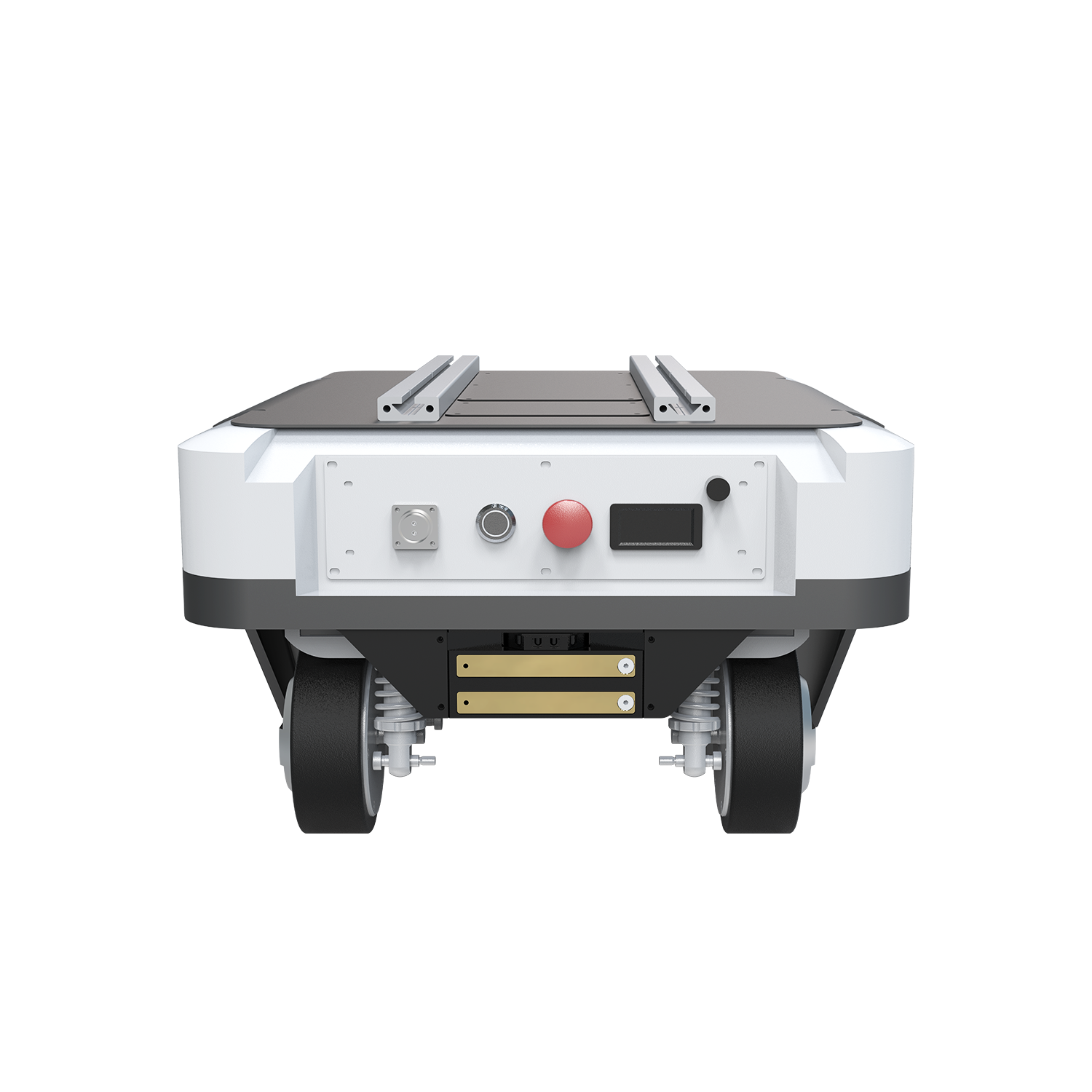

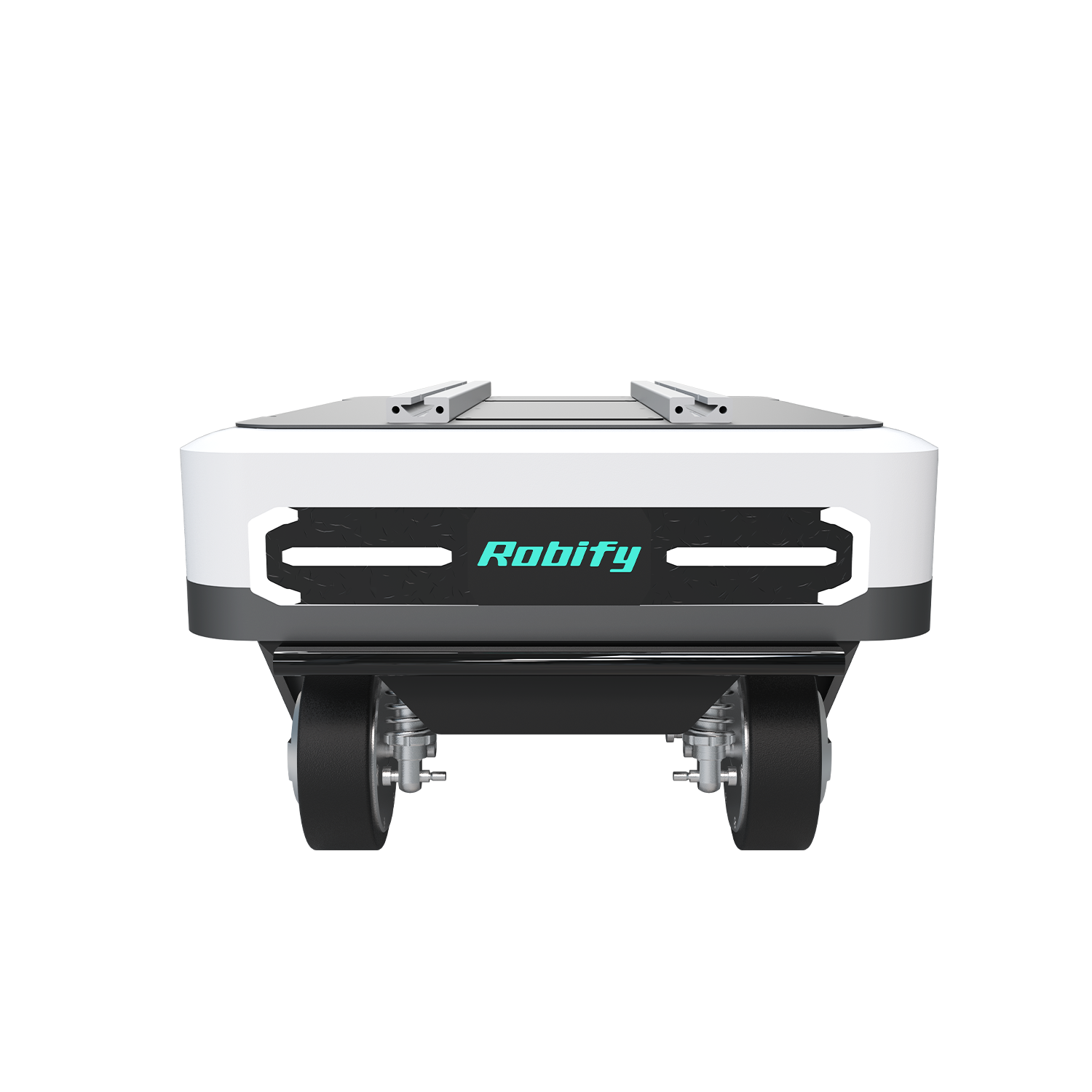

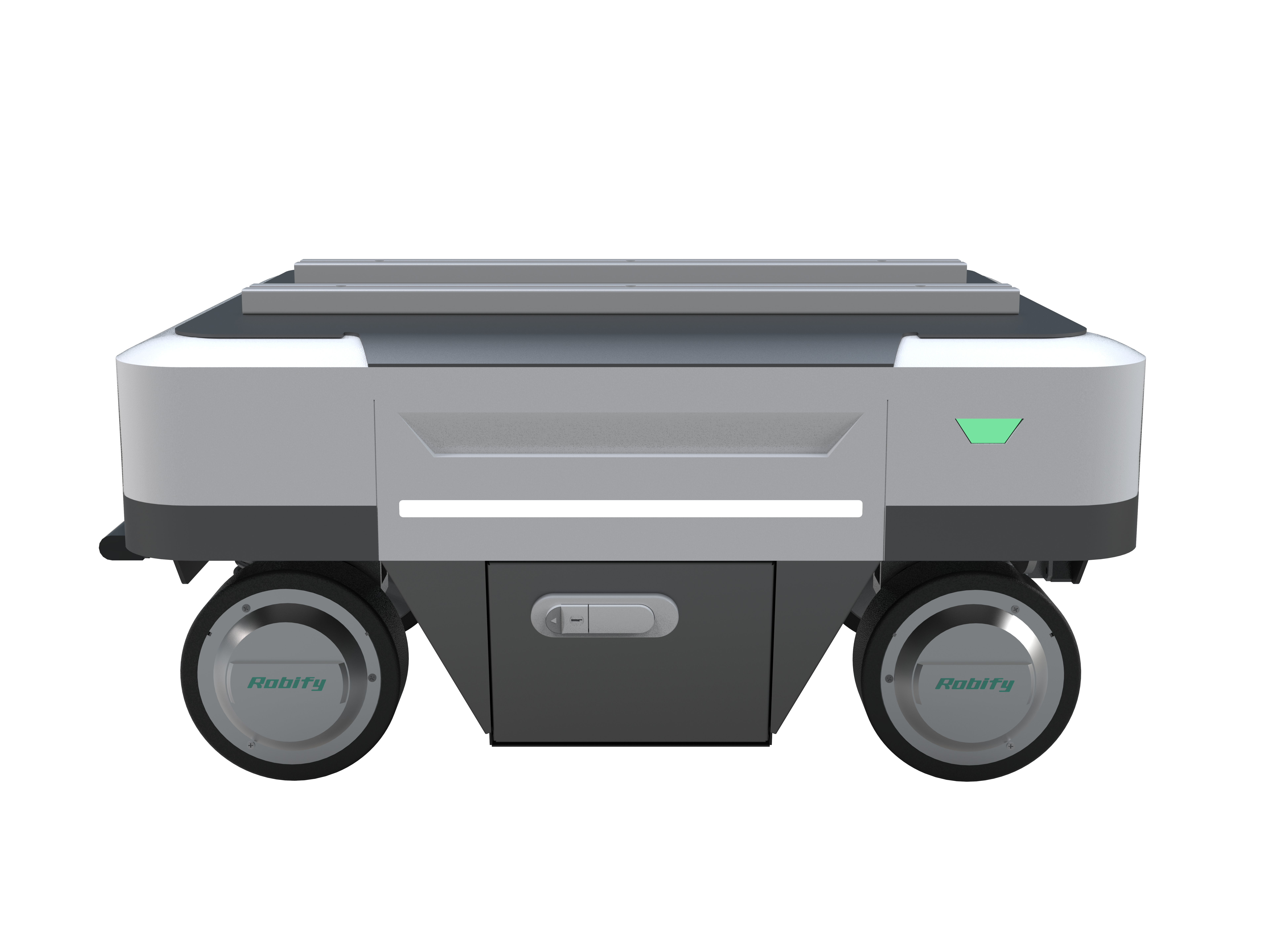

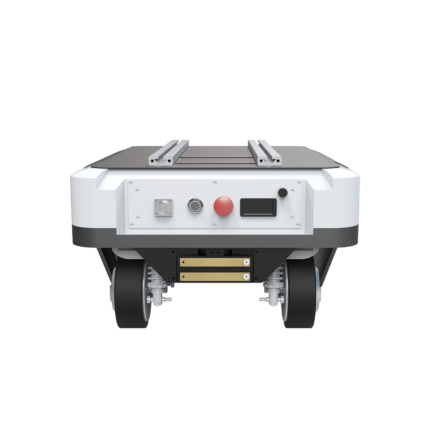

RobiOmni Omnidirectional 4-Whee l Steering Robot Chassis
$9,990.00
Short Description
High-performance autonomous mobile robot platform designed for precision agriculture and smart factory automation. This omnidirectional chassis combines 4-wheel independent steering with RTK GPS navigation for centimeter-accurate positioning in agricultural fields and industrial facilities.
130kg payload capacity, 8 servo motors (4 driving + 4 steering), IP44 weatherproof rating, 3-hour battery life, automatic charging compatibility. VCU control system optimized for agricultural robot applications including autonomous tractors, crop monitoring drones, and harvesting robots.
Industrial capabilities include CAN bus communication for factory AGVs, ROS navigation support for warehouse robots, integrated obstacle avoidance for safe human-robot collaboration. Laser navigation accessories enable precise indoor positioning for manufacturing automation.
Buy it with:
Series Tracked Mobile
The RobiTrac Mini Series Tracked Mobile Platform is a compact, all-terrain tracked chassis designed for indoor and outdoor use. It is primarily suited for outdoor off-road, agricultural, and underground tunnel applications.
Playload
50KG
Runtime
2.5H
Speed
1.8M/S

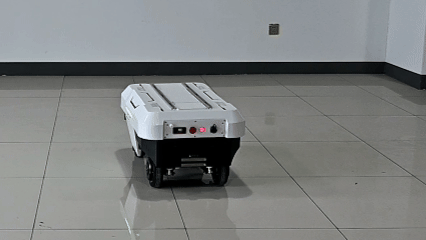

In-Place Rotation
360° Rotation & Zero Turning Radius Millimeter accuracy navigation ROS & Peripheral expansion
Indoor & Outdoor
IP44 waterproof AGV chassis 3 hours continuous operation Automatic charging dock

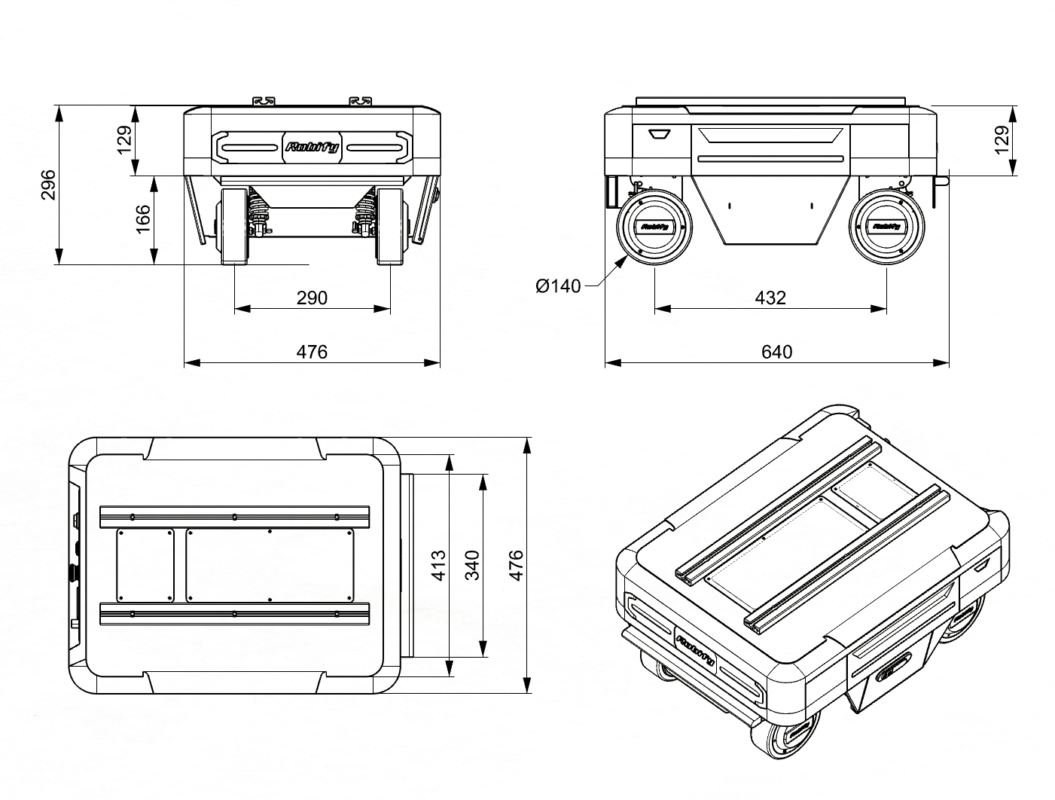

Dimensional Diagram
| Dimensions | 640*475*345（mm) |
| Chassis quality | 35KG |
| Protection rating (rainproof) | IP54 |
| Operating temperature | -10-60° |
| Battery capacity | 24V 20AH (expandable) |
| Battery life | 2.5H |
| Charging time | 3H |
| System Supported | ROS / Win / Ubuntu |
| Maximum speed | 1.8M/S |
| Vertical load | 50KG |
Product Parameters
| Dimensions |
640 * 475 * 345 mm |
|---|---|
| Weight |
35 kg |
| Payload |
50 kg |
| Max Speed |
1.8 m/s |
| Battery Life |
2.5 h |
| Battery Capacity |
24 V 20 AH |
| Charging Time |
3 h |
| System Supported |
ROS / Win / Ubuntu |
| Turning radius |
Zero-radius turn |
| Climbing |
20° |
| Protection rating |
IP54 |
